SELECT A DIAGRAM

02 - Cabinet


03 - Unit


04 - Airflow And Control , Literature An


05 - Accessory Kit

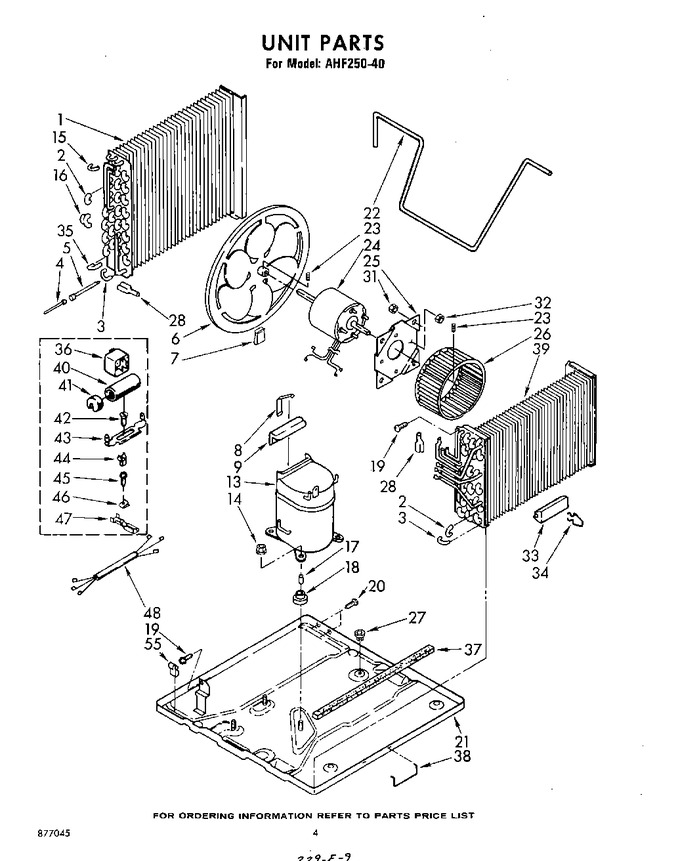

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	997227		Condenser		Appelez-nous	-
2	855199		Bend, Return (21) Condenser (18) Evaporator		Appelez-nous	-
3	854624		Bend, Return (16) Condenser (15) Evaporator		Appelez-nous	-
4	49599		Strainer		Appelez-nous	-
5	484230		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	997226		Blade, Fan		Appelez-nous	-
7	485334		Clip, Balancing		Appelez-nous	-
8	647391		Retainer, Cover		Appelez-nous	-
9	852009		Cover		Appelez-nous	-
13	484316		Compressor		Appelez-nous	-
14	858121		Locknut (4)		Appelez-nous	-
15	855644		Bend, Return		Appelez-nous	-
16	45148		Bend, Return (3-way)		Appelez-nous	-
17	858116		Sleeve (4)		Appelez-nous	-
18	475041		Grommet (4)		Appelez-nous	-
19	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
19	WP308685		Screw, 10 X 3/8 (repair)   (Replaces: 488861)			Immediately	$ 7.08
20	WP488729		Screw, 8 X 1/2a   (Replaces: 487910)			Immediately	$ 7.45
21	997202		Base		Appelez-nous	-
22	997252		Tube, Restrictor (3)		Appelez-nous	-
23	595085		Screw, 5/16 X 1/4		Appelez-nous	-
24	998345		Motor, Fan		Appelez-nous	-
25	998024		Plate, Mounting		Appelez-nous	-
26	948217		Wheel, Blower		Appelez-nous	-
27	948130		Bushing		Appelez-nous	-
28	466527		Flow Divider		Appelez-nous	-
31	858122		Locknut		Appelez-nous	-
32	WP488130		Nut, 8-32   (Replaces: 488130)				$ 6.59
33	472046		Anticipator		Appelez-nous	-
34	472047		Clip (2)		Appelez-nous	-
35	855457		Bend, Return (3)		Appelez-nous	-
36	484176		Relay (component Of Start Kit)		Appelez-nous	-
37	853170		Seal		Appelez-nous	-
38	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
39	997240		Evaporator		Appelez-nous	-
40	573642		Capacitor (component Of Start Kit)				$ 8.02
41	484340		Cap, Capacitor (component Of Start Kit)		Appelez-nous	-
42	487880		Screw, 10 X 5/8 (2) (component Of Start Kit)		Appelez-nous	-
43	41629		Bracket (component Of Start Kit)				$ 0.81
44	WP965173		Screw, 8 X 3/8 Component Of Start Kit)   (Replaces: 487869)			Immediately	$ 10.68
45	90654		Multiplier, Terminal (component Of Start Kit)		Appelez-nous	-
46	488660		Speed Nut (component Of Start Kit)   (Replaces: 486197)		Appelez-nous	-
47	45571		Terminal, Flag (component Of Start Kit)		Appelez-nous	-
48	484136		Harness, Wiring		Appelez-nous	-
55	471088		Clamp, Tube (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
