SELECT A DIAGRAM

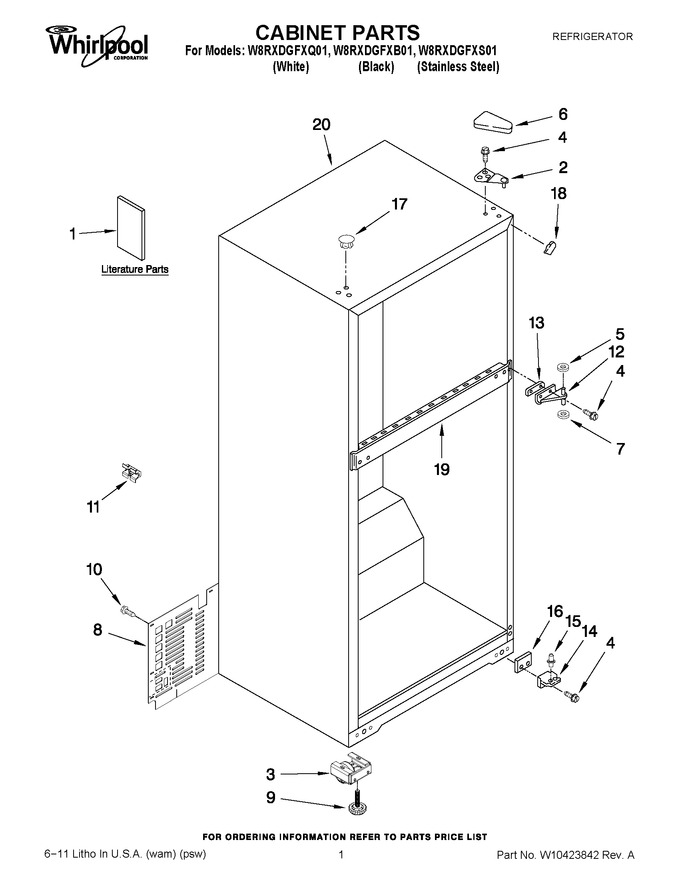

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual, Ref./ Fzr.				$ 30.30
1	W10344152		Service & Wiring Sheet		Appelez-nous	-
1	2316016		Use & Care Guide		Appelez-nous	-
1	W10267779		Energy Guide		Appelez-nous	-
2	WP2261963		Hinge Butt, Top   (Replaces: 2261963)			Immediately	$ 107.48
3	WPW10142530		Roller, Front   (Replaces: W10142530)			Immediately	$ 106.29
4	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
5	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.28
6	WP2213363		Cover, Hinge (black)   (Replaces: 2213363)			Immediately	$ 17.21
6	WP2213360		Cover, Hinge (white)   (Replaces: 2213360)				$ 18.17
7	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.67
8	WP2264132		Cover, Unit   (Replaces: 2264132)				$ 102.39
9	WPW10133299		Leveler Screw 45mm   (Replaces: W10133299)				$ 11.12
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
11	2266506		Spacer-back-cb				$ 12.95
12	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 76.57
13	2215385		Shim, Hinge Center (black)				$ 82.21
13	2166043		Shim, Hinge Center (white)				$ 62.78
14	WP2325482		Hinge Butt, Bottom   (Replaces: 2325482)			Immediately	$ 72.00
15	WP2325483		Hinge-pin, Bottom   (Replaces: 2325483)			Immediately	$ 6.80
16	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.34
17	WP2151652		Hole Plug (white)   (Replaces: 2201012)				$ 20.58
17	WP2183998		Hole Plug (black)   (Replaces: 2183998)				$ 17.11
18	W10859322		Corner Filler (white)   (Replaces: 2166003)				$ 7.28
18	W11500943		Corner Filler (black)   (Replaces: 2215384)				$ 7.18
19	N/P		Rail, Center (not Serviced)		Appelez-nous	-
20	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
