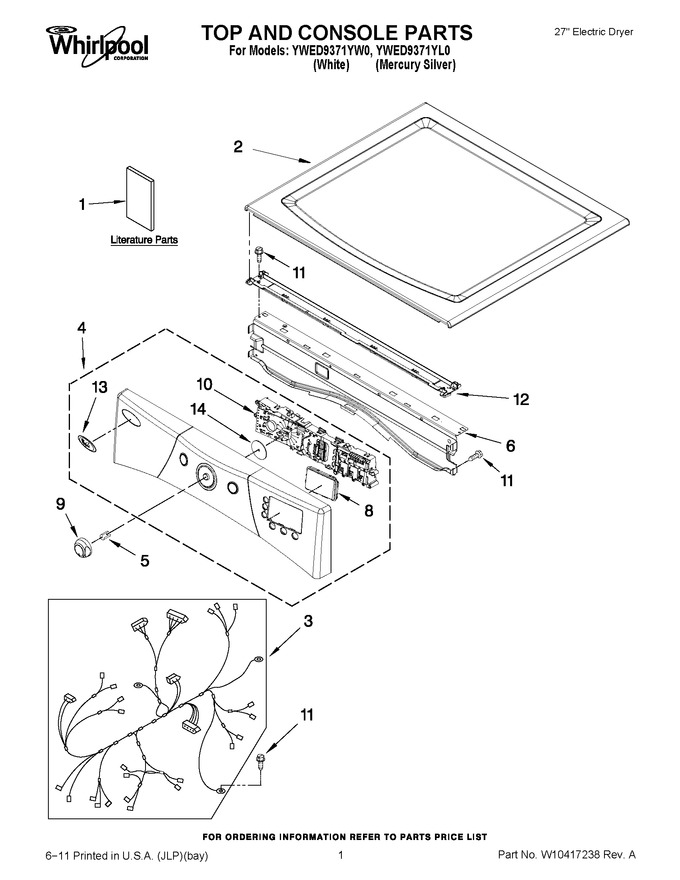

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10385100		Installation, Instruction		Appelez-nous	-
1	W10385092		Use & Care Guide		Appelez-nous	-
1	W10386307		Tech Sheet		Appelez-nous	-
2	WPW10336080		Top (white)   (Replaces: W10336080)				$ 298.79
2	WPW10336091		Top (mercury)   (Replaces: W10336091)				$ 292.44
3	W10278760		Harness, Main				$ 94.15
4	W10755981		Panel, Console (include Items, 8, 10, 13 & 15) (mercury)   (Replaces: W10385621)				$ 579.27
4	W10385620		Panel, Console (include Items, 8, 10, 13 & 15) (white)		Appelez-nous	-
5	WP8536939		Spring, Knob   (Replaces: 8536939)			Immediately	$ 7.38
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 170.79
8	W10368266		Window, Led Display		Appelez-nous	-
9	WPW10251394		Assembly, Knob (white & Silver)   (Replaces: W10251394)				$ 50.35
10	WPW10387234		Assembly, User Interface   (Replaces: W10387234)				$ 282.50
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
12	WPW10266747		Chanel, Water   (Replaces: W10266747)				$ 66.56
13	W10117943		Badge Assembly		Appelez-nous	-
14	8572039		Seal, Ui		Appelez-nous	-
