01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts

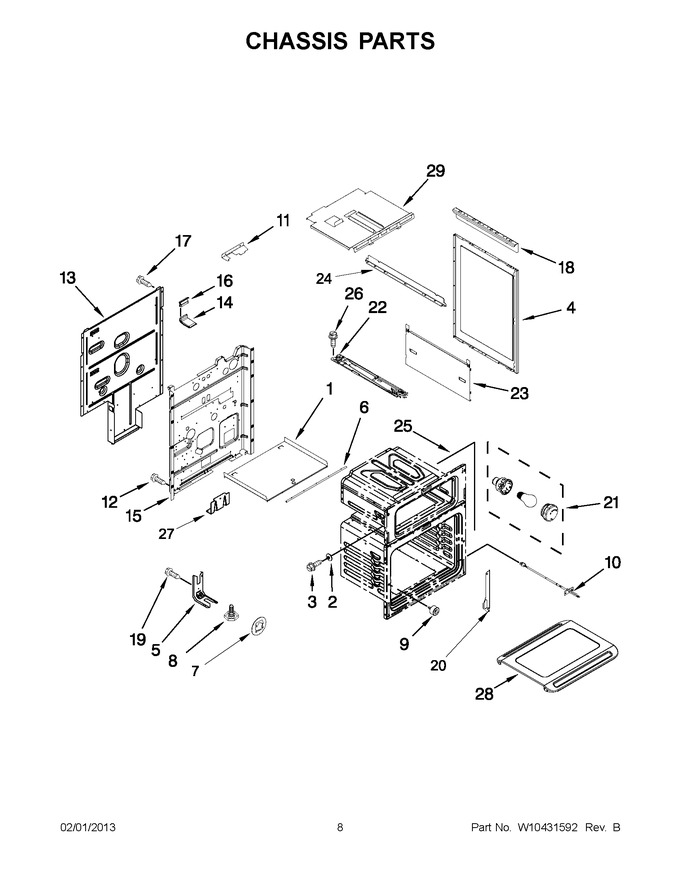

04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Internal Oven Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319038		Shield, Gemini				$ 135.53
2	WPW10237689		Spacer, Side Panel   (Replaces: W10237689)				$ 75.44
3	WPW10267456		Screw, Shoulder   (Replaces: W10267456)				$ 7.25
4	WPW10330376		Panel, Side (white)   (Replaces: W10330376)				$ 196.05
4	W10330375		Panel, Side (black)				$ 82.13
5	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.50
6	W10319000		Gasket, Gemini Oven Shield		Appelez-nous	-
7	74008835		Clip, Foot   (Replaces: 7112P158-60)				$ 9.40
8	W11665456		Foot, Leveler   (Replaces: 7101P507-60)			Immediately	$ 26.57
9	W10105790		Bumper & Screw				$ 6.67
10	WP7430P044-60		Sensor, Oven   (Replaces: 7430P044-60)			Immediately	$ 230.54
11	W10268558		Cover, Lower Wire		Appelez-nous	-
12	W10828565		Black   (Replaces: 7101P635-60)				$ 7.07
13	WPW10261387		Cover, Main Wire   (Replaces: W10261387)				$ 188.06
14	W11243157		Assembly, Flue (upper)   (Replaces: W10311326)				$ 333.32
14	W10272519		Assembly, Flue (lower)		Appelez-nous	-
15	WPW10260580		Back, Main   (Replaces: W10260580)				$ 140.36
16	W10321446		Assembly, Outlet Flue (upper)		Appelez-nous	-
16	W10321445		Assembly, Outlet Flue (lower)		Appelez-nous	-
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	W10319087		Bracket, U Channel				$ 74.79
19	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 27.65
20	W10410463		Cover, Hinge (left)				$ 89.04
20	W10410461		Cover, Hinge (right)				$ 85.37
21	W11594027		Assembly, Light   (Replaces: W10512757)			Immediately	$ 78.31
22	W10883049		Lock, Integrated Light   (Replaces: W10471348)			Immediately	$ 275.81
23	WPW10253471		Shield, Side Insulation   (Replaces: W10253471)				$ 143.68
24	W10357697		Bracket, Side Panel				$ 21.91
25	W10318928		Gasket, Oven Door (upper)				$ 159.63
25	WPW10269069		Gasket, Oven Door (lower)   (Replaces: W10269069)			Immediately	$ 171.72
26	74003975		Screw   (Replaces: 7101P375-60)				$ 12.63
27	W10260703		Support, Lower Oven		Appelez-nous	-
28	WPW10272546		Bottom, Oven   (Replaces: W10272546)			Immediately	$ 200.51
29	W10324643		Support, Insulation		Appelez-nous	-
NI	W11688777		Insulation, Back (upper)   (Replaces: W10318918)				$ 68.16
NI	W11685611		Insulation, Back (lower)   (Replaces: W10204081)				$ 111.33
NI	W11684919		Insulation, Floor   (Replaces: W10344586)				$ 110.20
NI	W11684769		Insulation Wrapper (upper)   (Replaces: W10318910)				$ 113.46
NI	W11688385		Insulation Wrapper (lower)   (Replaces: W10318911)				$ 114.75
