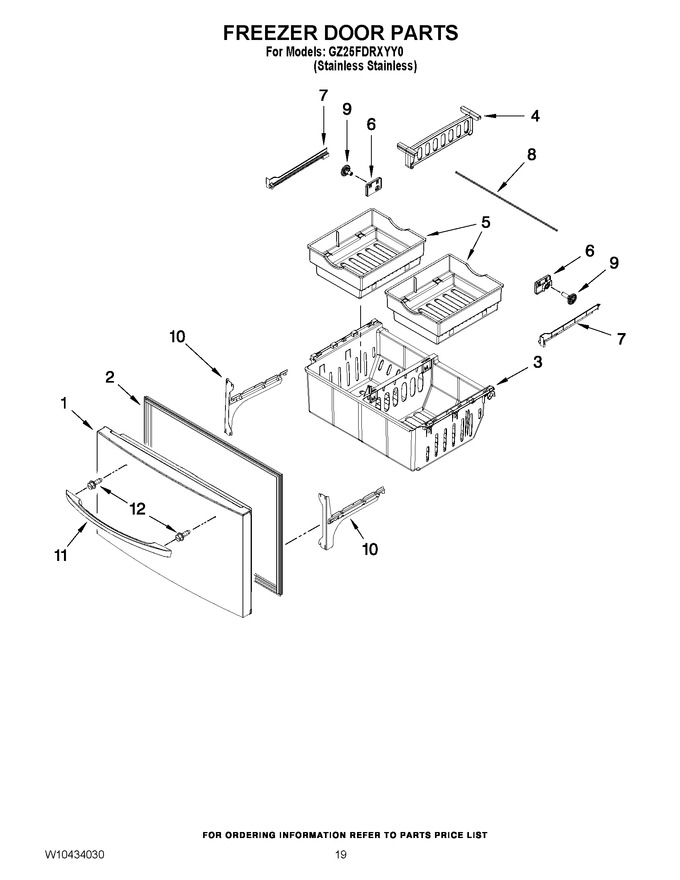

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107107S		Freezer Door (mono Stainless)		Appelez-nous	-
2	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10164045)				$ 291.24
3	WPW10293682		Bin, Lower   (Replaces: W10293682)				$ 163.06
4	W10146439		Divider, Upper				$ 29.39
5	W11218042		Bin, Upper   (Replaces: W10146448)				$ 183.09
6	W10348259		Mount-gear (left)				$ 80.88
6	W10348260		Mount-gear (right)				$ 80.91
7	W11489994		Rack, Side (right)   (Replaces: W10284695)				$ 21.11
7	W11489993		Rack, Side (left)   (Replaces: W10284694)			Immediately	$ 21.11
8	W11173556		Shaft-rack   (Replaces: 12812904WD)				$ 29.14
9	WPW10474715		Gear (left)   (Replaces: W10146446)			Immediately	$ 29.48
9	WPW10474716		Gear (right)   (Replaces: W10158749)			Immediately	$ 29.18
10	WPW10330991		Bracket, Door Slide (left)   (Replaces: W10122147)				$ 147.88
10	WPW10330993		Bracket, Door Slide (right)   (Replaces: W10122148)				$ 149.48
11	W10223025		Handle-freezer (stainless)		Appelez-nous	-
12	WP12992902		Screw, Handle   (Replaces: 12992902)				$ 10.72

    View Diagram in Separate Window       Print Part List
