SELECT A DIAGRAM

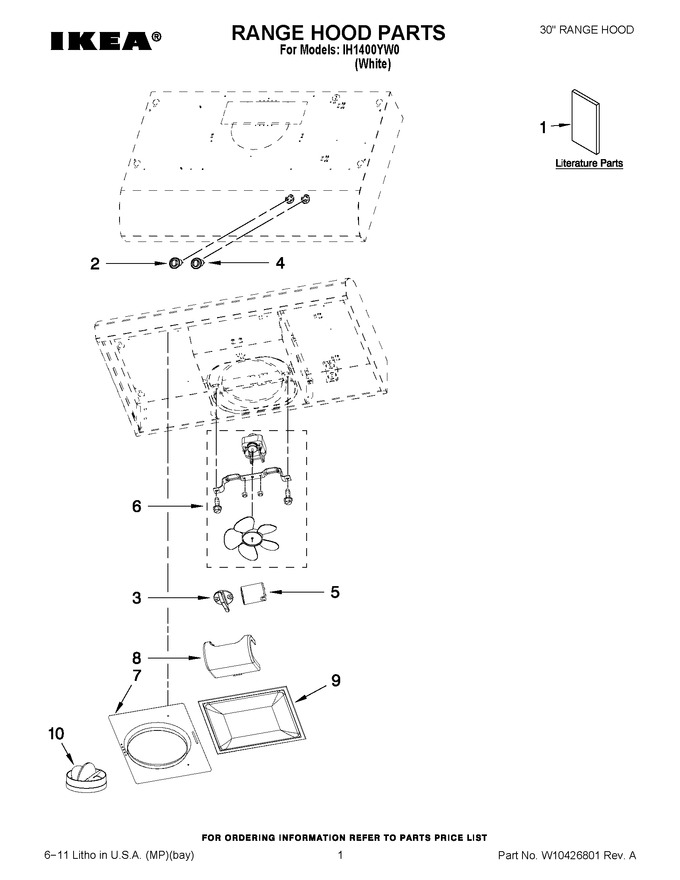

01 - Range Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10404065 | Guide, Use & Care |
|
- | |||||
| 2 | W10394523 | Switch, Light (white) |
|
- | |||||
| 3 | W10386347 | Latch, Filter |
|
$ 13.28 | |||||
| 4 | W10394557 | Switch, Fan (white) |
|
$ 74.80 | |||||
| 5 | W10910124 | Socket, Bulb (Replaces: W10386341) |
|
$ 75.21 | |||||
| 6 | W11105126 | Motor/fan Assembly (Replaces: W10392502) |
|
$ 313.19 | |||||
| 7 | W10388168 | Plate, Duct |
|
$ 37.92 | |||||
| 8 | W10386342 | Cover, Lamp |
|
$ 31.42 | |||||
| 9 | W10395127 | Filter (Replaces: W10386350) |
|
Immediately | $ 28.89 | ||||
| 10 | W10355451 | Damper, Hood |
|
$ 42.50 | |||||
| NI | W10613691 | Power Cord Kit (Replaces: W10355452) |
|
$ 52.92 |
