SELECT A DIAGRAM

01 - Cover Sheet

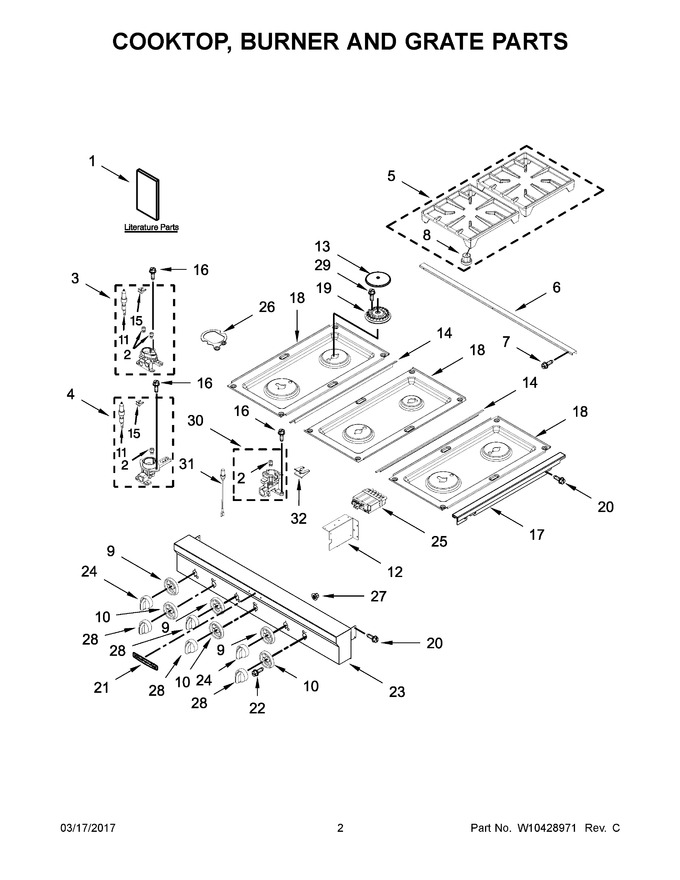

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403307		Sheet, Tech		Appelez-nous	-
2	W10340424		Orifice (17k) (left Front & Right Front, High)				$ 84.30
3	WPW10364555		Assembly, Orifice Holder (left Front & Right Front)   (Replaces: W10364555)				$ 102.08
4	WPW10364556		Assembly, Orifice Holder (left Rear, Center Front, Right Rear)   (Replaces: W10364556)				$ 92.15
5	W11569347		Grate, Burner (black)   (Replaces: W10221252)				$ 328.61
6	W10269217		Island, Trim				$ 277.64
7	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
8	8186321		Bumper, Grate   (Replaces: 9760219)			Immediately	$ 9.54
9	W10261510		Bezel, Front				$ 49.60
10	W10261512		Bezel, Rear		Appelez-nous	-
11	W10833887		Electrode, Burner   (Replaces: W10256047)			Immediately	$ 45.59
12	W10846054		Bracket, Spark Module		Appelez-nous	-
13	WPW10256034		Cap, Burner (black (left Front & Right Front))   (Replaces: W10256034)				$ 124.37
14	W10271524		T-strip				$ 191.11
15	W10256046		Clip, Spring (electrode)				$ 10.40
16	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.80
17	W10226014		Trim, Side (left)				$ 235.04
18	W10352969		Cooktop (black (left))				$ 302.18
19	W11106799		Spreader, Flame (left Front & Right Front)   (Replaces: W10879806)			Immediately	$ 87.49
20	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
21	W10201187		Nameplate				$ 82.78
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
23	W10778226		Panel, Control		Appelez-nous	-
24	W11244176		Knob, Dual (black (left Front & Right Front))   (Replaces: W10250389)				$ 70.53
25	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 346.50
26	8286930		Gasket, Orifice				$ 86.16
27	7103P166-60		Nut				$ 16.70
28	W11177673		Knob, Single (black (left Rear, Right Rear, Center Front, & Center Rear))   (Replaces: W10250391)				$ 81.50
29	WPW10373929		Screw   (Replaces: W10373929)				$ 39.29
30	W10282659		Assembly, Orifice Holder (center Rear)				$ 36.45
31	W10854967		Electrode, Burner (center Rear)   (Replaces: 8286725)			Immediately	$ 43.54
32	8286863		Spring, Electrode (center Rear)				$ 69.23
13A	WPW10256032		Cap, Burner (black (left Rear, Center Front, Right Rear))   (Replaces: W10256032)			Immediately	$ 79.54
13B	WPW10364463		Cap, Burner (black (center Rear))   (Replaces: W10364463)			Immediately	$ 50.27
16A	W10491985		Screw (center Rear)   (Replaces: 3196160)			Immediately	$ 6.80
17A	W10226015		Trim, Side (right)				$ 236.87
18A	W10352966		Cooktop (black (center))				$ 288.39
18B	W10352967		Cooktop (black (right))				$ 303.53
19A	WPW10256027		Spreader, Flame (left Rear, Center Front, Right Rear)   (Replaces: W10256027)			Immediately	$ 90.92
19B	WPW10282515		Spreader, Flame (center Rear)   (Replaces: W10282515)			Immediately	$ 134.88
1A	W10849069		Guide, Use & Care		Appelez-nous	-
1B	W10849071		Instructions, Installation		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2A	W10819958		Orifice (1.2k) (left Front & Right Front, Low)   (Replaces: W10256132)				$ 87.99
2B	W11051480		Orifice (15k) (left Rear, Center Front, Right Rear)   (Replaces: W10364221)				$ 81.62
2C	W10791075		Orifice (5k) (center Rear)   (Replaces: W10282663)				$ 93.31
NI	4450800		Screw, Grounding				$ 12.12
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 13.28
NI	W10283996		Assembly, Injector		Appelez-nous	-
NI	W10393255		Kit, Lp Conversion		Appelez-nous	-
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 170.31
NI	W10624584		Cord, Power				$ 170.61
NI	W10507834		Harness, Ignition				$ 181.90
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10631509		Harness, Switch				$ 128.29
