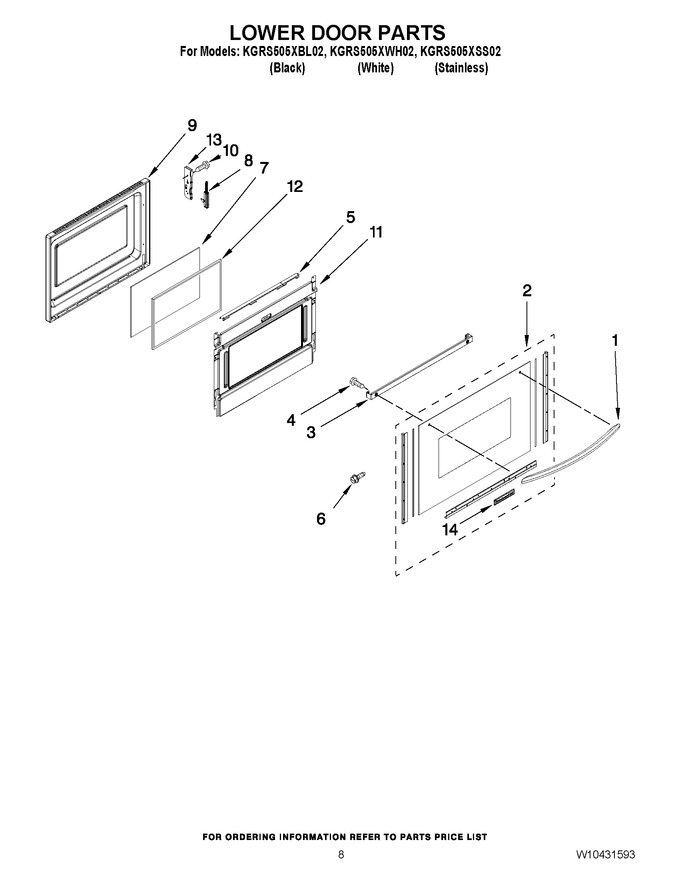

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10289075		Handle, Door (black)				$ 246.39
1	W10289074		Handle, Door (white)				$ 239.62
1	WPW10289076		Handle, Door (stainless)   (Replaces: W10289076)				$ 301.15
2	W10326134		Assembly, Glass Door (stainless (stainless Incl. Door Pnl & Badge))		Appelez-nous	-
2	W10324124		Assembly, Glass Door (white)		Appelez-nous	-
2	W10324547		Assembly, Glass Door (black)		Appelez-nous	-
3	WPW10294695		Bracket, Handle   (Replaces: W10294695)				$ 132.32
4	WPW10317886		Screw, Handle   (Replaces: W10317886)			Immediately	$ 7.38
5	WPW10272594		Frame, Glass   (Replaces: W10272594)			Immediately	$ 177.65
6	WPW10292297		Screw W/washer   (Replaces: W10292297)			Immediately	$ 6.80
7	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 158.18
8	WPW10335434		Hinge, Door (left)   (Replaces: W10335434)			Immediately	$ 92.61
8	WPW10335433		Hinge, Door (right)   (Replaces: W10335433)				$ 94.49
9	WPW10292008		Lining, Door   (Replaces: W10292008)				$ 311.72
10	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 6.80
11	W10340464		Retainer, Insul.				$ 260.82
12	WPW10321285		Insulation, Door   (Replaces: W10321285)				$ 95.79
13	WPW10272329		Receiver (left)   (Replaces: W10272329)				$ 73.00
13	WPW10272328		Receiver (right)   (Replaces: W10272328)				$ 81.04
14	WPW10243391		Badge (stainless)   (Replaces: W10243391)				$ 52.48
14	WPW10243392		Badge (black)   (Replaces: W10046640)				$ 66.33
14	WPW10243393		Badge (white)   (Replaces: W10046670)				$ 62.98

    View Diagram in Separate Window       Print Part List
