02 - Cabinet


03 - Unit , Lit/optional


04 - Air Flow And Control


05 - Accessory Kit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

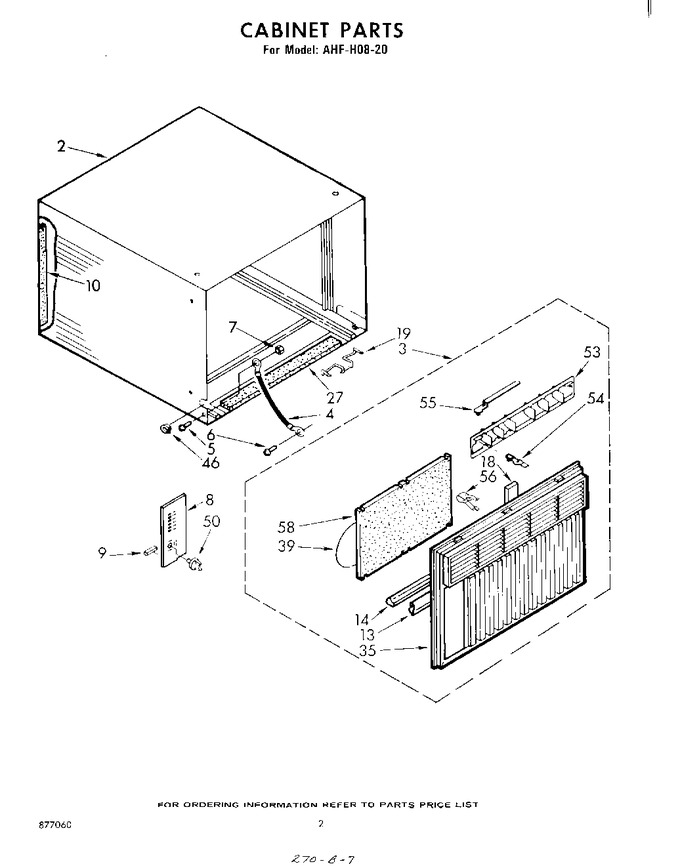

2	858828		Cabinet		Appelez-nous	-
3	947685		Front, Complete		Appelez-nous	-
4	857017		Wire, Ground		Appelez-nous	-
5	488853		Screw, 8 X 3/8		Appelez-nous	-
6	488854		Screw, 8 X 3/8		Appelez-nous	-
7	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
8	947684		Escutcheon, Plate		Appelez-nous	-
9	470036		Spacer, Escutcheon Plate (3)		Appelez-nous	-
10	WP854334		Seal, Cabinet (back)   (Replaces: 858839)				$ 12.55
13	WP854334		Seal, Cabinet Front   (Replaces: 647913)				$ 12.55
14	647914		Seal		Appelez-nous	-
18	649198		Seal		Appelez-nous	-
19	649966		Clip (2)		Appelez-nous	-
27	647854		Seal		Appelez-nous	-
35	947686		Front, Cabinet		Appelez-nous	-
39	476707		Retainer, Filter		Appelez-nous	-
46	647849		Grommet, Appliance Cable		Appelez-nous	-
50	947264		Knob, Control		Appelez-nous	-
53	647798		Louver, Vertical		Appelez-nous	-
54	644165		Handle, Vertical Louver (2)		Appelez-nous	-
55	647799		Link, Vertical Louver (2)		Appelez-nous	-
56	641484		Detent Spring (2)				$ 150.14
58	648008		Filter		Appelez-nous	-
