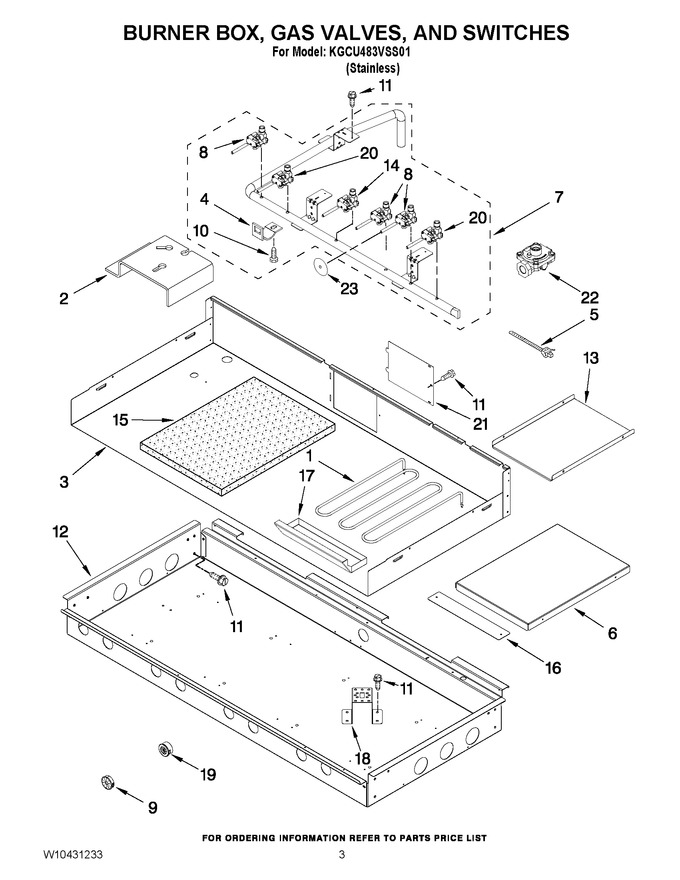

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193014		Element, Griddle				$ 291.11
2	8285790		Bracket, Mounting Orifice				$ 77.27
3	W10189155		Cover, Burner Box		Appelez-nous	-
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W11675299		Cable Tie   (Replaces: W10368807)				$ 12.18
6	W10246074		Tray-insulation, Griddle		Appelez-nous	-
7	W10402611		Manifold Assy.				$ 201.17
8	WPW10385582		Valve, Gas (lr,cf,rr) 15k   (Replaces: W10385582)			Immediately	$ 306.77
9	W10189097		Bushing, Burner Box				$ 7.20
10	W10189140		Screw, Valve Mtg				$ 6.14
11	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
12	W10371517		Burner Box		Appelez-nous	-
13	W10145620		Tray, Grease		Appelez-nous	-
14	WPW10385583		Valve, Gas (cr) 5k   (Replaces: W10385583)			Immediately	$ 298.89
15	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
16	W10250433		Cover, Plate		Appelez-nous	-
17	W10276497		Drip Tray, Griddle				$ 363.63
18	W10369547		Bracket, Orifice Holder		Appelez-nous	-
19	309552		Bushing, Snap		Appelez-nous	-
20	WPW10371235		Valve, Gas (lf & Rf) 20k   (Replaces: W10371235)			Immediately	$ 298.94
21	W10115843		Cover, Ignition		Appelez-nous	-
22	WP9759091		Regulator, Pressure   (Replaces: 9759091)			Immediately	$ 306.39
23	W10423373		Seal, Switch Cover		Appelez-nous	-
NI	W10353141		Tubing, Gas Right Front				$ 157.64
NI	W10353154		Tubing, Gas Left Front			Immediately	$ 155.50
NI	WPW10353133		Tubing, Gas Rear   (Replaces: W10353133)				$ 157.40
NI	W10280797		Tubing, Gas (center Rear)		Appelez-nous	-
NI	W10353152		Tubing, Gas Center Front				$ 71.04
