00 - Cover Page
01 - Top And Console Parts

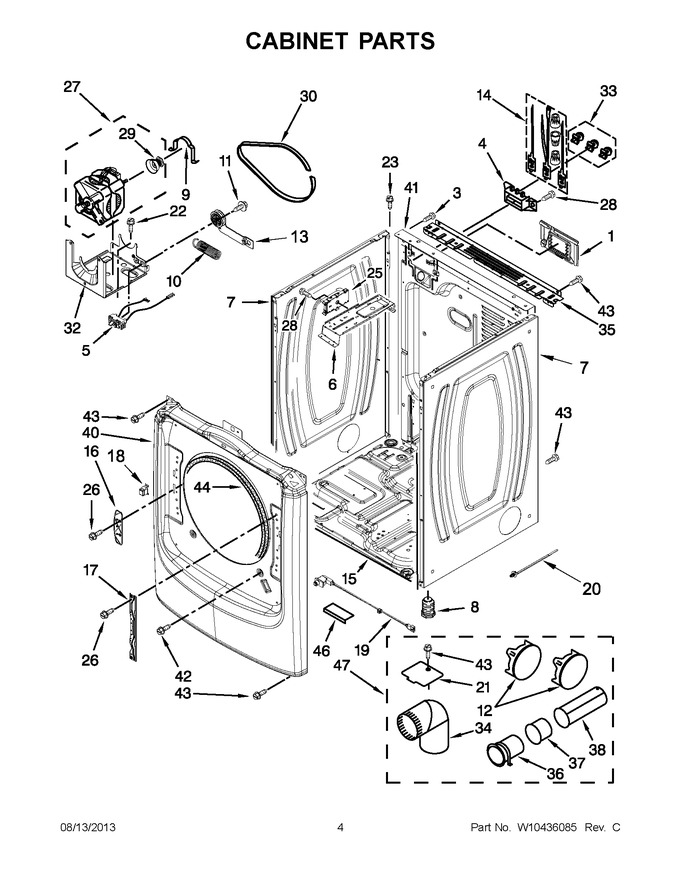

02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10316167 | Cover, Terminal Block (Replaces: W10316167) |
|
$ 93.64 | |||||
| 3 | W10850756 | Screw (Replaces: 8533974) |
|
$ 7.38 | |||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 5 | W10847984 | Switch, Broken Belt (Replaces: W10411936) |
|
Immediately | $ 24.21 | ||||
| 6 | W10259611 | Bracket, Control |
|
$ 127.30 | |||||
| 7 | W11233548 | Panel, Side (white) (Replaces: W10468495) |
|
$ 235.20 | |||||
| 7 | WPW10468501 | Panel, Side (cosmetallic) (Replaces: W10468501) |
|
$ 315.75 | |||||
| 7 | W10468502 | Panel, Side (red) |
|
$ 149.30 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10404617) |
|
$ 68.02 | |||||
| 13 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 32.20 | ||||
| 14 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 15 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 328.82 | |||||
| 16 | WPW10208250 | Strike, Door (Replaces: W10208250) |
|
$ 39.47 | |||||
| 17 | W10315109 | Bracket, Door Hinge |
|
- | |||||
| 18 | W11240283 | Assembly, Spring Catch (Replaces: W10208401) |
|
Immediately | $ 25.24 | ||||
| 19 | W11168374 | Assembly, Door Switch (Replaces: W10295361) |
|
$ 509.01 | |||||
| 20 | WPW10339879 | Cable Tie (Replaces: W10267532) |
|
$ 7.47 | |||||
| 21 | WPW10354249 | Plate, Cover (Replaces: W10354249) |
|
$ 8.47 | |||||
| 22 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 23 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 25 | WPW10378252 | Control Board (Replaces: W10378252) |
|
Immediately | $ 389.48 | ||||
| 26 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 27 | WPW10508324 | Assembly, Motor (Replaces: W10396038) |
|
Immediately | $ 308.62 | ||||
| 28 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 29 | W10837625 | Pulley, Motor (Replaces: W10460106) |
|
Immediately | $ 11.49 | ||||
| 30 | WPW10112954 | Belt, Drive (Replaces: W10112954) |
|
Immediately | $ 94.79 | ||||
| 32 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 85.36 | ||||
| 33 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 34 | WPW10416072 | Elbow (Replaces: W10416072) |
|
$ 25.34 | |||||
| 35 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 41.56 | |||||
| 36 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 86.36 | |||||
| 37 | WPW10331278 | Pipe, Exhaust (short) (Replaces: W10331278) |
|
$ 74.61 | |||||
| 38 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 83.92 | |||||
| 40 | W10337786 | Panel, Front (red) |
|
- | |||||
| 40 | W10301067 | Panel, Front (cosmetallic) |
|
$ 161.56 | |||||
| 40 | W10294349 | Panel, Front (white) |
|
$ 165.87 | |||||
| 41 | W10487430 | Panel, Rear |
|
Immediately | $ 321.41 | ||||
| 42 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 43 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 46 | W11037143 | Cover, Door Switch (Replaces: W10215725) |
|
- | |||||
| 47 | W10323246 | Kit, 4-way Vent |
|
Immediately | $ 80.96 | ||||
| NI | 49621 | Foot, Optional (extended Lengthpackage Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
