Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LW10319244 Refrigerator Door (includes Item No.6) (white)   (Replaces: W10319244) Special Order $ 1,491.39

1 LW10202774 Refrigerator Door (includes Item No.6) (black)   (Replaces: W10202774) Special Order $ 1,024.64

1 LW10360610 Refrigerator Door (includes Item No.6) (stainless)   (Replaces: W10360610) Appelez-nous -
1 W10360609 Refrigerator Door (includes Item No.6) (mono Stainless) Appelez-nous -
2 WP2256101 Compartment Door   (Replaces: 2256101) In-Stock Immediately $ 80.48

3 WPW10321304 Shelf Bin   (Replaces: W10321304) In-Stock Immediately $ 40.46

4 WP3400012 Screw   (Replaces: 3400012) Special Order $ 7.43

5 WPW10288153 Screw   (Replaces: W10129563) In-Stock Immediately $ 8.69

6 W10136732 Door Gasket, Magnetic (apollo Grey)   (Replaces: 2327161) In-Stock Immediately $ 325.08

6 2159073 Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600) Special Order $ 299.87

6 2159081 Door Gasket, Magnetic (black)   (Replaces: 2309653) Special Order $ 302.02

7 WP2156022 Shelf Bin   (Replaces: 2156022) In-Stock Immediately $ 70.75

8 WPW10170739 Handle (antique Steel)   (Replaces: W10170739) Special Order $ 327.53

8 WPW10170743 Handle (stainless)   (Replaces: W10170743) Special Order $ 328.97

8 W10296255 Handle (black) Appelez-nous -
8 W10296254 Handle (white) Appelez-nous -
9 WPW10170766 Nameplate   (Replaces: W10170766) In-Stock Immediately $ 63.45

10 WP2182179 Door Closer Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 6.48

11 WP489483 Screw   (Replaces: 489420) Special Order $ 10.27

12 W10185571 Bracket, Door Stop (black) Appelez-nous -
12 W10185570 Bracket, Door Stop (silver) Special Order $ 11.59

13 WP2182181 Thimble-top   (Replaces: 2308091) Special Order $ 7.34


    View Diagram in Separate Window     Print Icon   Print Part List

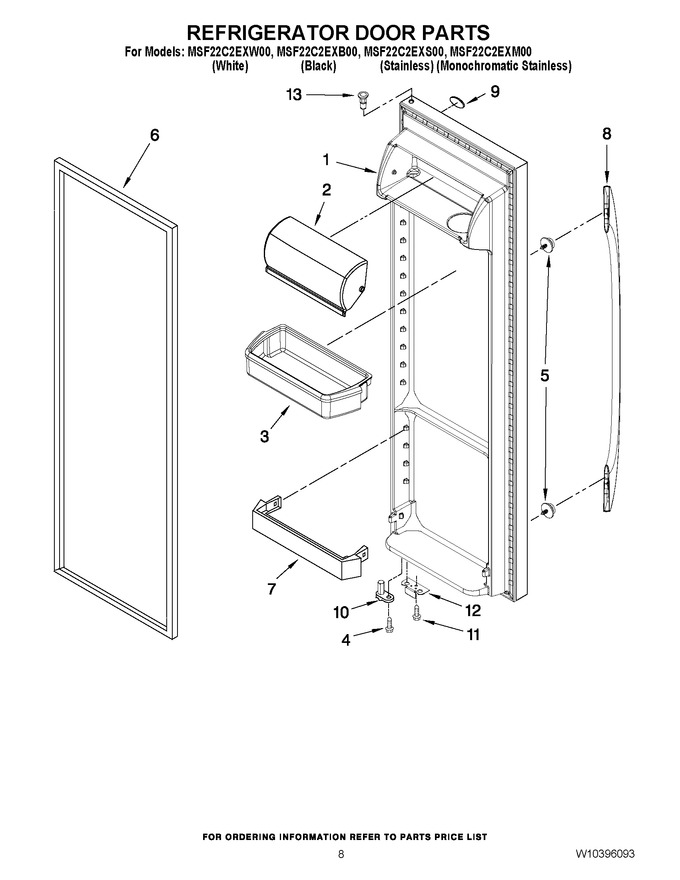

Diagram for MSF22C2EXM00
