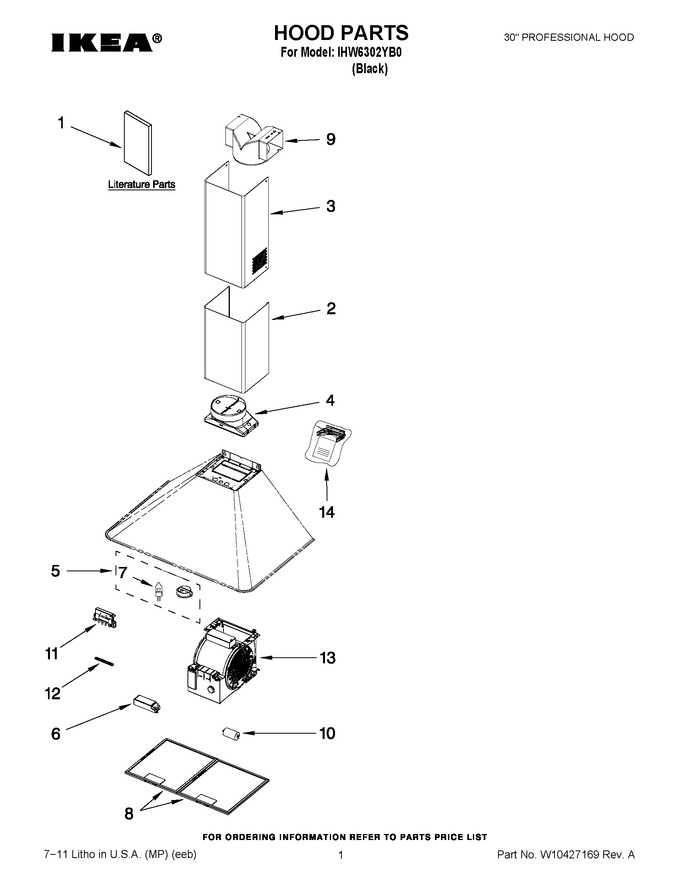

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10392946 | Use & Care Guide |
|
- | |||||
| 2 | W10427585 | Cover, Lower Duct |
|
$ 139.44 | |||||
| 3 | W10427586 | Cover, Upper Duct |
|
- | |||||
| 4 | WPW10313841 | Damper Assembly (Replaces: W10313841) |
|
$ 179.54 | |||||
| 5 | WP8186678 | Bulb Assembly (Replaces: 8186678) |
|
$ 73.21 | |||||
| 6 | W11186486 | Transformer (Replaces: 8186686) |
|
Immediately | $ 206.24 | ||||
| 7 | WPW10298151 | Bulb (Replaces: W10298151) |
|
Immediately | $ 27.66 | ||||
| 8 | W10169961A | Filter, Grease (Replaces: W10169961) |
|
Immediately | $ 39.53 | ||||
| 9 | W10427014 | Duct, Air Diverter |
|
$ 99.74 | |||||
| 10 | W10256657 | Capacitor |
|
Immediately | $ 84.93 | ||||
| 11 | WPW10427588 | Switch, Buttons (Replaces: W10427588) |
|
$ 261.95 | |||||
| 12 | W10428369 | Cover, Buttons |
|
- | |||||
| 13 | WPW10351824 | Fan Assembly (Replaces: W10351824) |
|
$ 563.66 | |||||
| 14 | W10427590 | Hardware, Install |
|
- | |||||
| NI | W10412939 | Charcoal Filter Kit (for Non- Vented Installations Only) |
|
Immediately | $ 70.33 |
