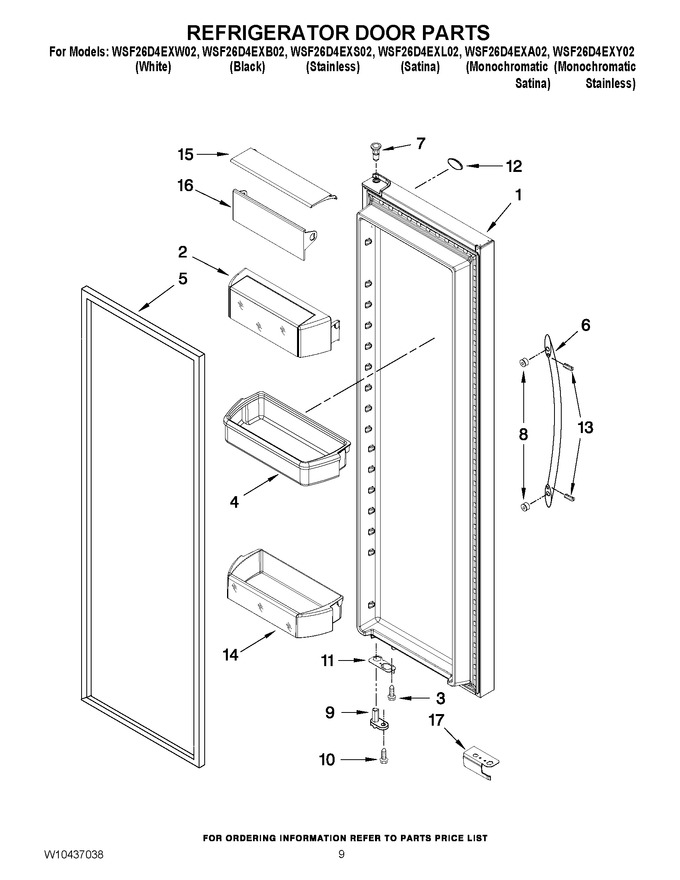

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10287376 | Refrigerator Door (includes Item 5) (satina) (Replaces: W10287376) |
|
- | |||||
| 1 | W10334306 | Refrigerator Door (includes Item 5) (black) |
|
- | |||||
| 1 | W10287380 | Refrigerator Door (includes Item 5) (stainless) |
|
- | |||||
| 1 | W10261124 | Refrigerator Door (includes Item 5) (white) |
|
- | |||||
| 1 | W10287390 | Refrigerator Door (includes Item 5) (mono Satina) |
|
- | |||||
| 1 | W10287391 | Refrigerator Door (includes Item 5) (mono Stainless) |
|
- | |||||
| 2 | WPW10324760 | Door Compartment Assembly (Replaces: W10316889) |
|
$ 77.04 | |||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 4 | WPW10296855 | Door Bin, Shallow (Replaces: W10296855) |
|
$ 71.24 | |||||
| 5 | W10355582 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10249916) |
|
$ 307.13 | |||||
| 5 | WPW10249912 | Door Gasket, Magnetic (black) (Replaces: W10249912) |
|
$ 296.26 | |||||
| 5 | WPW10247884 | Door Gasket, Magnetic (mist Beige) (Replaces: W10247884) |
|
$ 290.67 | |||||
| 6 | WPW10670421 | Handle (stainless/satina) (Replaces: W10274730) |
|
$ 228.74 | |||||
| 6 | WPW10268057 | Handle (black) (Replaces: W10268057) |
|
$ 156.70 | |||||
| 6 | WPW10268056 | Handle (white) (Replaces: W10268056) |
|
$ 156.70 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2200087) |
|
$ 7.34 | |||||
| 8 | WPW10170540 | Stud, Handle (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 9 | WPW10257203 | Door Closer, Upper Cam (apollo Grey) (Replaces: W10257203) |
|
$ 11.66 | |||||
| 9 | WPW10257201 | Door Closer, Upper Cam (black) (Replaces: W10257201) |
|
$ 11.64 | |||||
| 9 | WPW10248011 | Door Closer, Upper Cam (white) (Replaces: W10248011) |
|
$ 11.64 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 11 | W11037957 | Bracket, Door Stop (chrome) (Replaces: W10247909) |
|
$ 72.22 | |||||
| 12 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 83.86 | ||||
| 13 | WPW10010150 | Set Screw (black) (Replaces: W10010150) |
|
$ 7.71 | |||||
| 13 | W11366418 | Set Screw (chrome) (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 14 | WPW10335220 | Door Bin (Replaces: W10335220) |
|
$ 84.23 | |||||
| 15 | WPW10316883 | Lid, Compartment (Replaces: W10316883) |
|
$ 60.90 | |||||
| 16 | WPW10316885 | Window, Door Compartment (Replaces: W10316885) |
|
$ 67.88 | |||||
| 17 | W11661847 | Cover, Door Stop (midnight Grey) (Replaces: W10257218) |
|
Immediately | $ 28.54 | ||||
| 17 | W10789144 | Cover, Door Stop (white) (Replaces: W10248013) |
|
$ 17.44 | |||||
| 17 | W10257216 | Cover, Door Stop (black) |
|
- |
