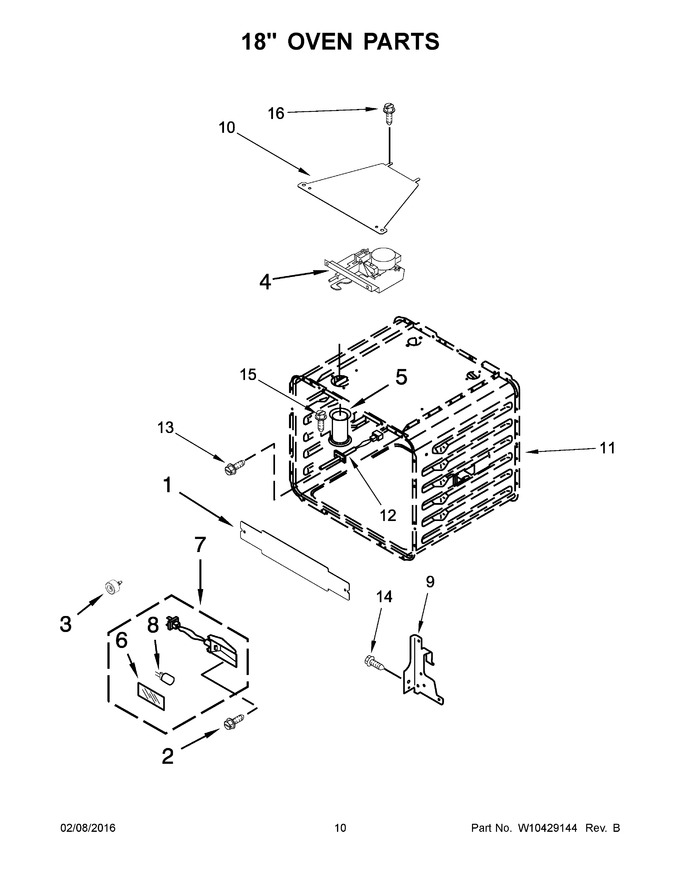

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10335955 | Counterbalance, Door |
|
- | |||||
| 2 | 4449748 | Screw |
|
$ 12.81 | |||||
| 3 | W10105790 | Bumper & Screw |
|
$ 6.67 | |||||
| 4 | W11029221 | Latch, Motorized (Replaces: W10195935) |
|
Immediately | $ 294.89 | ||||
| 5 | W10288078 | Tube, Vent |
|
$ 105.17 | |||||
| 6 | W10169756 | Lens, Light |
|
$ 37.97 | |||||
| 7 | WPW10307114 | Assembly, Oven Light (Replaces: W10307114) |
|
Immediately | $ 104.41 | ||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 46.52 | ||||
| 9 | WP4455605 | Receiver, Hinge (left) (Replaces: 4455605) |
|
Immediately | $ 114.93 | ||||
| 10 | W10160858 | Cover, Latch |
|
$ 69.25 | |||||
| 11 | N/P | Liner, Oven (not Serviced) |
|
- | |||||
| 12 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 94.50 | ||||
| 13 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 14 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.80 | |||||
| 15 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| 16 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9A | WP4455606 | Receiver, Hinge (right) (Replaces: 4455606) |
|
Immediately | $ 118.57 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11688744 | Insulation, Wrap, 18 (Replaces: W10282820) |
|
- | |||||
| NI | W10282812 | Insulation, Back, 18 |
|
- |
