01 - Cooktop, Burner And Grate Parts

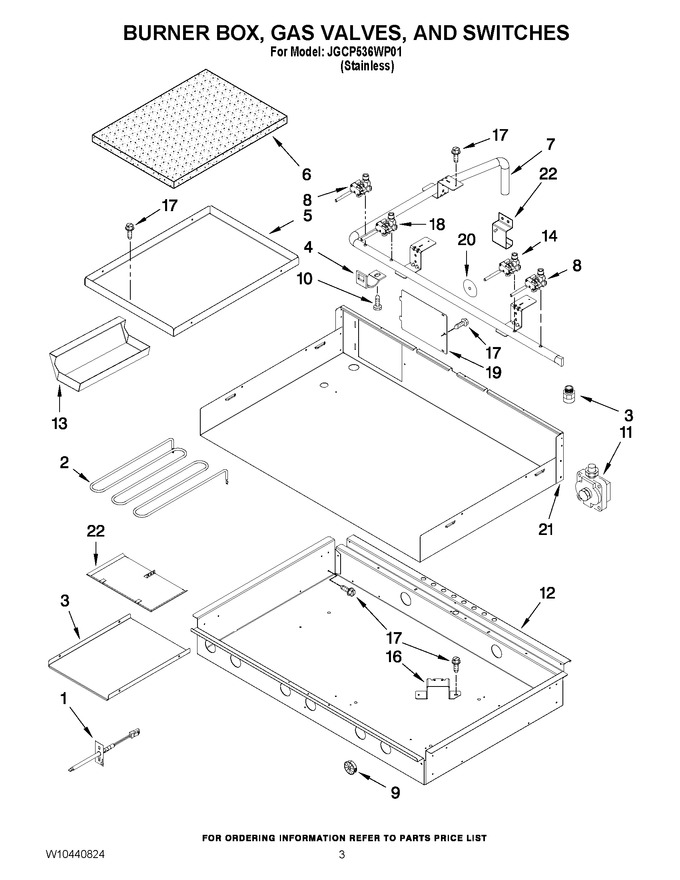

02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319835		Sensor				$ 215.35
2	W10193014		Element, Griddle				$ 291.11
3	W10145620		Tray, Element Griddle		Appelez-nous	-
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10246074		Tray, Insulation Griddle		Appelez-nous	-
6	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
7	W10115985		Manifold		Appelez-nous	-
8	WPW10371235		Valve, Single (lr & Rf)   (Replaces: W10371235)			Immediately	$ 298.94
9	W10189097		Bushing, Burner Box				$ 7.20
10	W10189140		Screw, Valve Mtg				$ 6.14
11	WP9759091		Regulator,pressure   (Replaces: 9759091)			Immediately	$ 306.39
12	W10371516		Burner Box		Appelez-nous	-
13	W10276497		Drip Tray, Griddle				$ 363.63
14	WPW10385583		Valve, Simmer   (Replaces: W10385583)			Immediately	$ 298.89
16	W10189107		Bracket, Burner		Appelez-nous	-
17	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
18	WPW10385582		Valve, Gas (lf)   (Replaces: W10385582)			Immediately	$ 306.77
19	W10115843		Cover, Ignition		Appelez-nous	-
20	W10189177		Seal, Switch Cover				$ 9.00
21	W10189156		Cover, Burner Box		Appelez-nous	-
22	8285790		Bracket, Mounting Orifice				$ 77.27
NI	W10353141		Tube, Frt Right				$ 157.64
NI	W10353154		Tube, Frt Left			Immediately	$ 155.50
NI	W10280797		Tubing, Gas		Appelez-nous	-
NI	W10353152		Tube, Frt Ctr				$ 71.04
NI	WPW10353133		Tube, Back   (Replaces: W10353133)				$ 157.40
