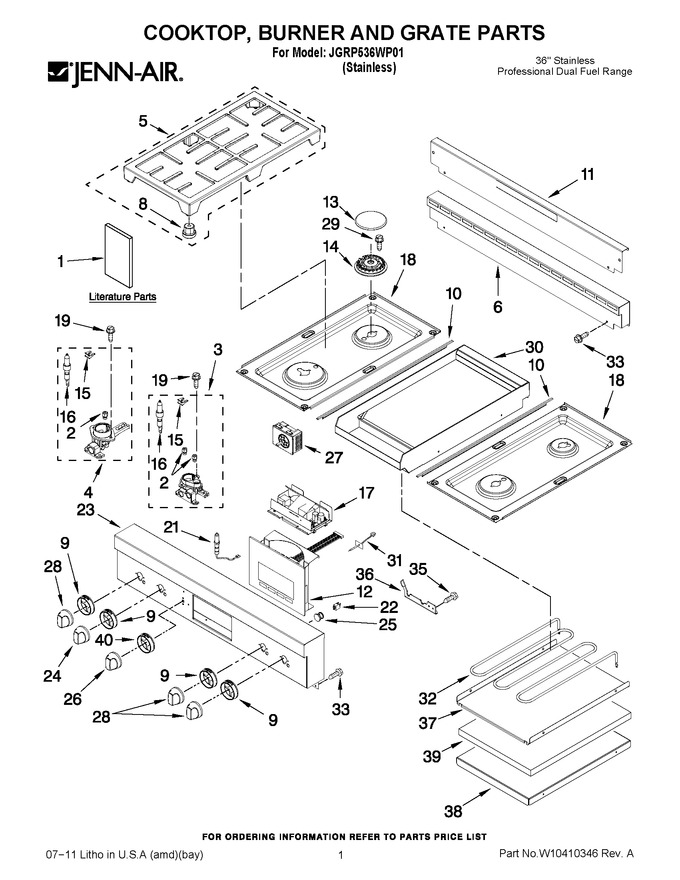

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403308		Tech Sheet (english)		Appelez-nous	-
1	W10403309		Tech Sheet (french)		Appelez-nous	-
1	W10399389		Use & Care Guide		Appelez-nous	-
1	W10394575		Installation Instructions		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10075750		Instr, Installer		Appelez-nous	-
2	W10340424		Orifice (lf-high)				$ 84.30
2	W10791075		Orifice (rr)   (Replaces: W10282663)				$ 93.31
2	W11051480		Orifice (rf,lr)   (Replaces: W10364221)				$ 81.62
2	W10819958		Orifice (lf-low)   (Replaces: W10256132)				$ 87.99
3	WPW10364555		Orifice Holder (lf)   (Replaces: W10364555)				$ 102.08
4	WPW10364556		Orifice Holder (rf,lr)   (Replaces: W10364556)				$ 92.15
4	W10282659		Orifice Holder (rr)				$ 36.45
5	W11344501		Grate, Burner   (Replaces: W10276551)			Immediately	$ 196.45
6	W10323249		Trim, Island				$ 284.53
8	W10185266		Pad, Grate   (Replaces: 8286695)			Immediately	$ 13.92
9	W10276494		Bezel				$ 72.38
10	W10291193		L-strip		Appelez-nous	-
11	W10323250		Island, Trim Insert				$ 163.61
12	W10344181		Assembly, Keypad		Appelez-nous	-
13	WPW10364463		Cap, Burner (rr)   (Replaces: W10364463)			Immediately	$ 50.27
13	WPW10256032		Cap, Burner (rf,lr)   (Replaces: W10256032)			Immediately	$ 79.54
13	WPW10256034		Cap, Burner (lf)   (Replaces: W10256034)				$ 124.37
14	WPW10282515		Base, Burner (rr)   (Replaces: W10282515)			Immediately	$ 134.88
14	W11106799		Base, Burner (lf)   (Replaces: W10256029)			Immediately	$ 87.49
14	WPW10256027		Base, Burner (rf,lr)   (Replaces: W10256027)			Immediately	$ 90.92
15	W10256046		Spring, Electrode (lf,rf,lr)				$ 10.40
15	8286863		Spring, Electrode (rr)				$ 69.23
16	W10833887		Electrode (lf,rf,lr)   (Replaces: W10256047)			Immediately	$ 45.59
17	WPW10145531		Assembly, Power Supply   (Replaces: W10145531)			Immediately	$ 280.13
18	W10352968		Cooktop (right)				$ 303.53
18	W10352969		Cooktop (left)				$ 302.18
19	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.80
21	W10146042		Electrode, Wire				$ 17.77
22	W10116114		Light, Indicator Housing			Immediately	$ 84.21
23	W11444937		Panel, Control   (Replaces: W10295786)				$ 673.48
24	W10145568		Knob, Control Lf				$ 47.63
25	W10294500		Lens, Indicator				$ 6.92
26	W10145566		Knob, Griddle			Immediately	$ 46.49
27	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 316.77
28	W10145454		Knob, Control (lr,rf)				$ 42.25
29	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
30	W10625221		Griddle, Module   (Replaces: W10276498)				$ 1,311.59
31	W10319835		Sensor				$ 215.35
32	W10193014		Element, Griddle				$ 291.11
33	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
35	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
36	W10130759		Bracket,console (right)				$ 68.35
36	W10130760		Bracket,console (left)				$ 68.35
37	W10145620		Tray, Element Griddle		Appelez-nous	-
38	W10246074		Tray, Insulation Griddle		Appelez-nous	-
39	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
40	W10145453		Bezel, Griddle				$ 72.38
