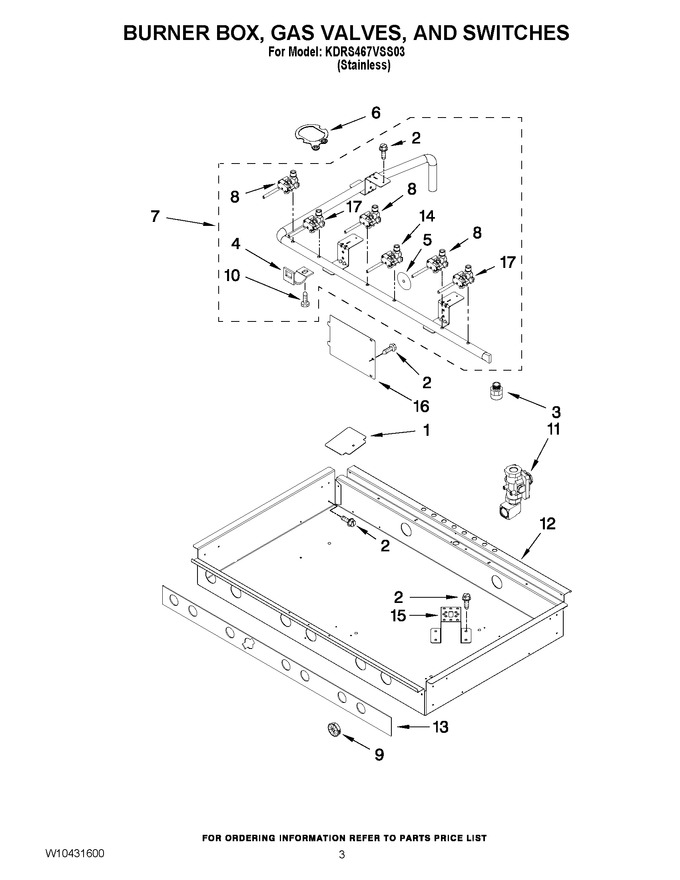

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Top Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10287036		Cover, Housing		Appelez-nous	-
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
3	4453115		Adapter (female)				$ 114.03
3	4453116		Adapter (male)				$ 161.49
4	WPW10432260		Bracket, Valve   (Replaces: W10432260)				$ 66.59
5	W10189177		Seal, Switch Cover				$ 9.00
6	8286930		Gasket, Orifice				$ 86.16
7	W10402611		Assembly, Manifold				$ 201.17
8	WPW10385582		Valve, Single Lr,cf,rr   (Replaces: W10385582)			Immediately	$ 306.77
9	W10189097		Bushing, Burner Box				$ 7.20
10	W10189140		Screw, Valve Mtg				$ 6.14
11	W10293267		Regulator, Pressure				$ 282.52
12	W10371516		Burner Box		Appelez-nous	-
13	W11688578		Insulation   (Replaces: W10145622)		Appelez-nous	-
14	WPW10385583		Valve, Single (cr)   (Replaces: W10385583)			Immediately	$ 298.89
15	W10369547		Bracket, Burner		Appelez-nous	-
16	W10115843		Cover, Ignition		Appelez-nous	-
17	WPW10371235		Valve, Gas (lf,rf)   (Replaces: W10371235)			Immediately	$ 298.94
NI	W10353154		Tubing, Gas (front Left)			Immediately	$ 155.50
NI	W10280797		Tubing, Gas (left Rear)		Appelez-nous	-
NI	W10353152		Tubing, Gas (front Center)				$ 71.04
NI	W10353141		Tubing, Gas (front Right)				$ 157.64
NI	WPW10353133		Tubing, Gas (right Rear)   (Replaces: W10353133)				$ 157.40
NI	W10269191		Regulator, Tube-pressure				$ 195.92
