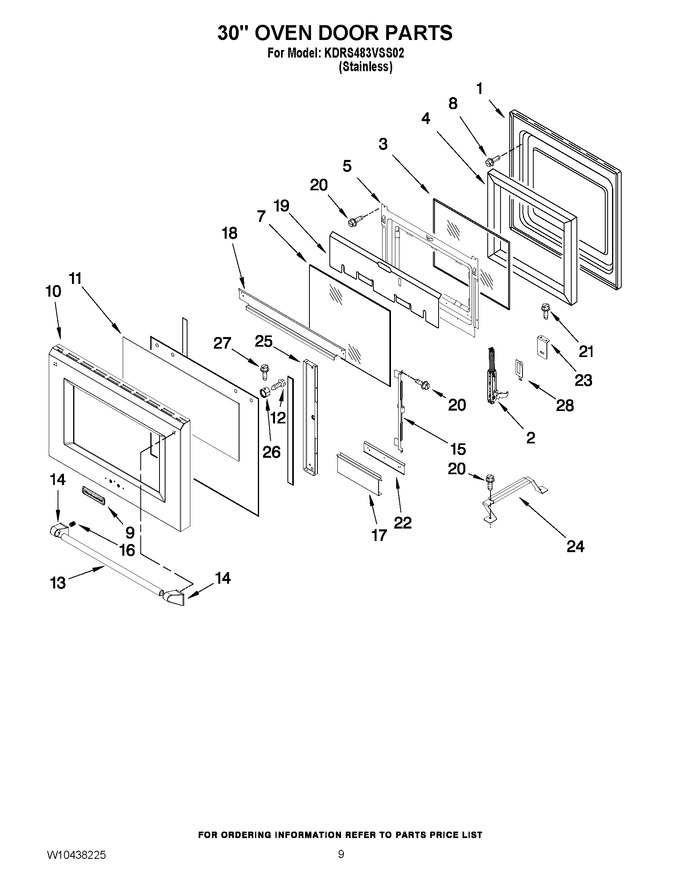

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9759413 | Panel, Interior Door (Replaces: 9759413) |
|
$ 333.41 | |||||
| 2 | W10782123 | Hinge, Door (left) (Replaces: W10269202) |
|
Immediately | $ 58.21 | ||||
| 2 | W10782122 | Hinge, Door (right) (Replaces: W10269201) |
|
$ 58.21 | |||||
| 3 | WP4449259 | Glass, Inner (Replaces: 4449259) |
|
$ 192.01 | |||||
| 4 | WP4451722 | Insulation, Door (Replaces: 4451722) |
|
$ 170.79 | |||||
| 5 | WP4457132 | Retainer, Glass (Replaces: 4457132) |
|
$ 288.89 | |||||
| 7 | WP9759225 | Glass, Inner (Replaces: 9759225) |
|
Immediately | $ 178.02 | ||||
| 8 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.80 | ||||
| 9 | W10852683 | Nameplate (Replaces: W10113961) |
|
$ 109.47 | |||||
| 10 | W10225959 | Panel, Exterior |
|
$ 238.73 | |||||
| 11 | W10115711 | Glass, Door Outer |
|
- | |||||
| 12 | W10217130 | Screw, End Cap |
|
$ 11.77 | |||||
| 13 | W10115720 | Door Handle |
|
$ 249.31 | |||||
| 14 | W10226026 | Handle, End Caps (left) |
|
Immediately | $ 49.20 | ||||
| 14 | W10226025 | Handle, End Caps (right) |
|
$ 86.92 | |||||
| 15 | WP9759229 | Bracket, Side 2nd Glass (Replaces: 9759229) |
|
$ 168.75 | |||||
| 16 | W10771437 | Screw, End Cap (Replaces: W10212184) |
|
$ 6.71 | |||||
| 17 | W10145809 | Bracket-bottom,outer Glass |
|
- | |||||
| 18 | W10145805 | Bracket-top,outer Glass |
|
$ 83.18 | |||||
| 19 | 4457104 | Shield, Heat Top |
|
$ 35.30 | |||||
| 20 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 21 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 22 | 4457114 | Shield, Heat Bottom |
|
$ 196.01 | |||||
| 23 | W10115715 | Bracket, Door Top |
|
- | |||||
| 24 | 9759230 | Bracket(3rd Glass) |
|
$ 36.30 | |||||
| 25 | W10145811 | Bracket-side Outer Glass |
|
- | |||||
| 26 | W10225964 | Support, Handle |
|
$ 10.41 | |||||
| 27 | W10061760 | Screw |
|
$ 6.86 | |||||
| 28 | W10115877 | Cover, Hinge (right) |
|
- | |||||
| 28 | W10115876 | Cover, Hinge (left) |
|
- |
