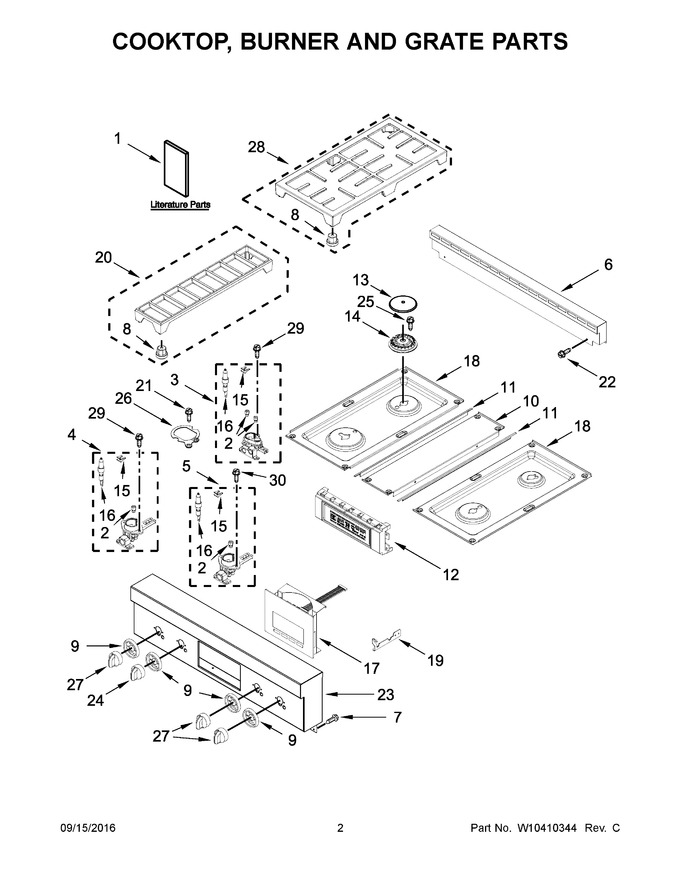

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


04 - Chassis Parts


05 - Oven Parts


06 - Top Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Miscellaneous Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403301		Sheet, Tech (english)		Appelez-nous	-
2	W10340424		Orifice (17k) (left Front, High)				$ 93.67
3	WPW10364555		Assembly, Orifice Holder (left Front)   (Replaces: W10364555)				$ 113.42
4	WPW10364556		Assembly, Orifice Holder (left Rear & Right Front)   (Replaces: W10364556)				$ 102.39
5	W10282659		Assembly, Orifice Holder (right Rear)				$ 40.50
5	W11344501		Assembly, Grate (black)   (Replaces: W10276551)			Immediately	$ 218.28
6	W10269218		Trim, Island				$ 265.16
7	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
8	W10185266		Bumper, Grate   (Replaces: 8286695)			Immediately	$ 15.47
9	W10276494		Bezel, Front				$ 80.42
10	W10189105		Filler, Cooktop		Appelez-nous	-
11	W10271524		T-strip				$ 212.34
12	W10464535		Assembly, Keypad				$ 1,125.19
13	WPW10256034		Cap, Burner (black (left Front))   (Replaces: W10256034)				$ 138.19
14	W11106799		Spreader, Flame (left Front)   (Replaces: W10495853)			Immediately	$ 97.21
15	W10256046		Clip, Spring (electrode) (left Front, Left Rear, Right Front)				$ 11.56
16	W10833887		Electrode, Burner (left Front, Left Rear, Right Front)   (Replaces: W10256047)			Immediately	$ 50.65
17	WPW10145531		Assembly, Power Supply   (Replaces: W10145531)			Immediately	$ 311.25
18	W10352969		Cooktop (black (left))				$ 335.75
19	W10130760		Bracket, Moving Console (left)				$ 75.94
20	W11241675		Grate, Filler   (Replaces: W10276495)				$ 194.76
21	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
22	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
23	W10789952		Panel, Control				$ 573.45
24	W10145568		Knob, Dual (stainless)				$ 52.92
25	W11404293		Screw   (Replaces: W10078270)			Immediately	$ 14.74
26	8286930		Gasket, Orifice				$ 95.73
27	W10145454		Knob, Single (stainless)				$ 46.94
28	W11344501		Assembly, Grate (black)   (Replaces: W10276551)			Immediately	$ 218.28
29	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
30	W11676349		Screw   (Replaces: 8286921)			Immediately	$ 14.76
13A	WPW10256032		Cap, Burner (black (left Rear & Right Front))   (Replaces: W10256032)			Immediately	$ 88.38
13B	WPW10364463		Cap, Burner (black (right Rear))   (Replaces: W10364463)			Immediately	$ 55.85
14A	WPW10256027		Spreader, Flame (left Rear & Right Front)   (Replaces: W10256027)			Immediately	$ 101.02
14B	WPW10320937		Spreader, Flame (right Rear)   (Replaces: W10250405)				$ 157.22
14B	WPW10282515		Spreader, Flame (right Rear)   (Replaces: W10282515)			Immediately	$ 149.87
15A	8286863		Spring, Electrode (right Rear)				$ 76.92
16A	WPW10145991		Electrode, Burner (right Rear)   (Replaces: W10145991)			Immediately	$ 84.47
18A	W10352968		Cooktop (black (right))				$ 337.26
19A	W10130759		Bracket, Moving Console (right)				$ 75.94
1A	W10403302		Sheet, Tech (french)		Appelez-nous	-
1B	W10837387		Guide, Use & Care		Appelez-nous	-
1B	W10399387		Guide, Use & Care		Appelez-nous	-
1C	W10526076		Instructions, Installation		Appelez-nous	-
1C	W10821685		Instructions, Installation		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2A	W10819958		Orifice (1.2k) (left Front, Low)   (Replaces: W10256132)				$ 97.77
2B	W11051480		Orifice (15k) (left Rear & Right Front)   (Replaces: W10364221)				$ 90.69
2C	W10791075		Orifice (5k) (right Rear)   (Replaces: W10282663)				$ 103.68
4A	W10282659		Assembly, Orifice Holder (right Rear)				$ 40.50
NI	W10145988		Harness, Switch				$ 168.55
NI	W10363279		Harness, Ignition				$ 83.72
NI	W10177363		Grommet, Flexible 60mm		Appelez-nous	-
NI	W11675299		Tie, Cable   (Replaces: W10368807)				$ 13.53
NI	W10116142		Harness, Convection Fan				$ 80.09
NI	4450800		Screw, Grounding				$ 13.47
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	8019P013-60		Clip, Wire Lock				$ 15.70
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 189.23
NI	WP9759877		Retainer, Strain Relief   (Replaces: 9759877)				$ 20.21
NI	W10830809		Harness, Main				$ 382.29
NI	W10766100		Kit, Lp Conversion		Appelez-nous	-
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10508247		Harness, Main				$ 336.05
NI	W10780278		Harness, Door Latch   (Replaces: W10345322)			Immediately	$ 95.87
NI	W10344051		Harness, Communication				$ 133.32
