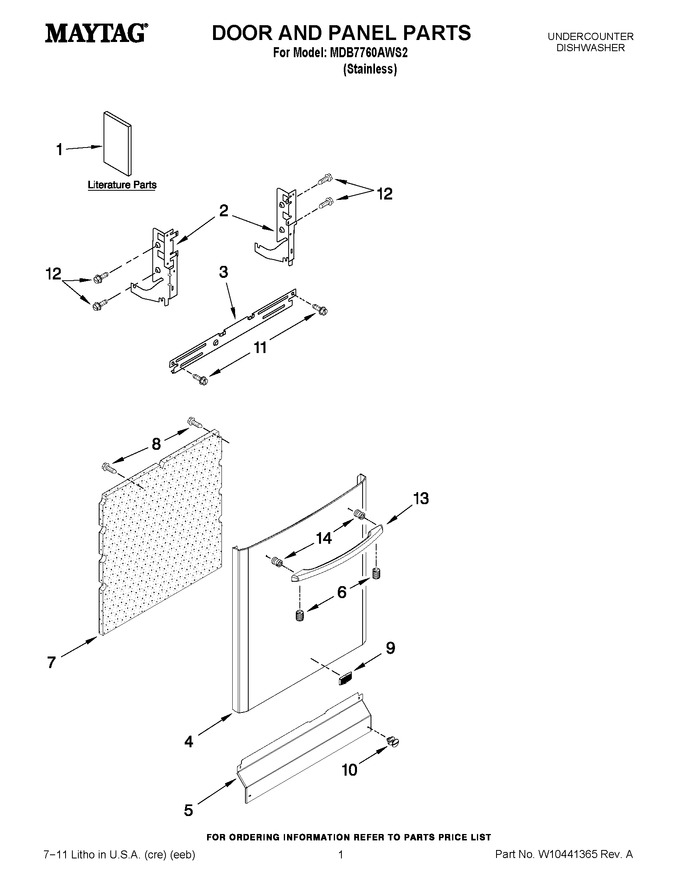

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10398585 | Energy Guide |
|
- | |||||
| 1 | W10329314 | Instructions, Installation |
|
- | |||||
| 1 | W10199658 | Guide, Use & Care (english/french) |
|
- | |||||
| 1 | W10142800 | Tech Sheet |
|
- | |||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10406152 | Panel Front |
|
- | |||||
| 5 | W10827631 | Access Panel (Replaces: W10369024) |
|
Immediately | $ 195.64 | ||||
| 6 | WP8534008 | Screw (Replaces: 8534008) |
|
$ 9.37 | |||||
| 7 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 8 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 9 | W10199708 | Badge, Name |
|
$ 53.28 | |||||
| 10 | WPW10503548 | Screw (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 11 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 12 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 13 | W10324628 | Handle |
|
$ 98.96 | |||||
| 14 | W11157086 | Stud, Mounting (Replaces: W10195726) |
|
Immediately | $ 8.87 |
