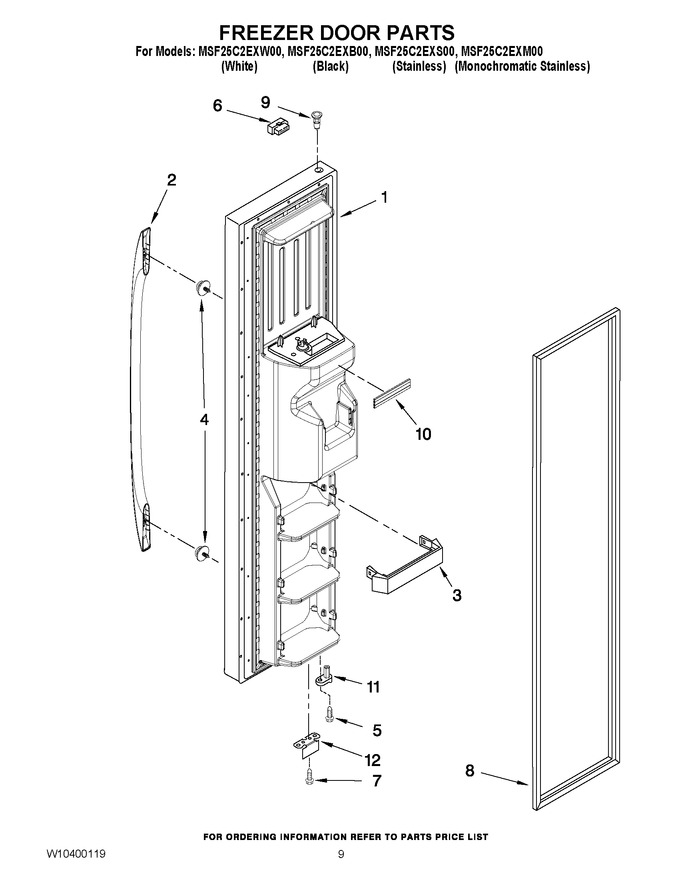

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10317919		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10317959		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10367647		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
1	W10317912		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	WPW10170743		Handle (stainless)   (Replaces: W10170743)				$ 365.52
2	W10296254		Handle (white)		Appelez-nous	-
2	W10296255		Handle (black)		Appelez-nous	-
3	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
4	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 9.65
5	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
6	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
7	WP489483		Screw   (Replaces: 489420)				$ 11.41
8	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2327164)				$ 315.51
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 299.24
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309532)				$ 293.13
9	WP2182181		Thimble-top   (Replaces: 2182181)				$ 8.15
10	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 24.27
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
12	W10219813		Bracket, Door Stop (black)		Appelez-nous	-
12	W10185566		Bracket, Door Stop (silver)		Appelez-nous	-
12	W10185570		Bracket, Door Stop (zinc)				$ 11.59

    View Diagram in Separate Window       Print Part List
