Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10145766 Kickplate Special Order $ 95.92

2 W10115869 Shaft, Long In-Stock Immediately $ 98.42

3 W10115793 Shaft, Short Special Order $ 68.25

4 489504 E-ring Special Order $ 6.66

5 WP3400968 Nut   (Replaces: 3400968) In-Stock Immediately $ 7.52

6 W10145379 Duct, Bottom Appelez-nous -
7 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

8 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

9 W10249333 Base, Leveling Leg Special Order $ 263.00

10 W10859931 Leveler   (Replaces: 9760860) Special Order $ 107.20

11 WP4449743 Screw   (Replaces: 4449743) Special Order $ 6.80

12 W10145376 Support, Channel Appelez-nous -
13 WPW10138054 Assembly, Roller   (Replaces: W10138054) Special Order $ 40.81

14 W10269206 Chassis, Side (left) Special Order $ 211.75

15 WPW10250465 Panel, Side (left)   (Replaces: W10250465) Special Order $ 403.80

14A W10269205 Chassis, Side (right) Special Order $ 211.98

15A W11333303 Panel, Side (right)   (Replaces: W10250464) Special Order $ 379.27


    View Diagram in Separate Window     Print Icon   Print Part List

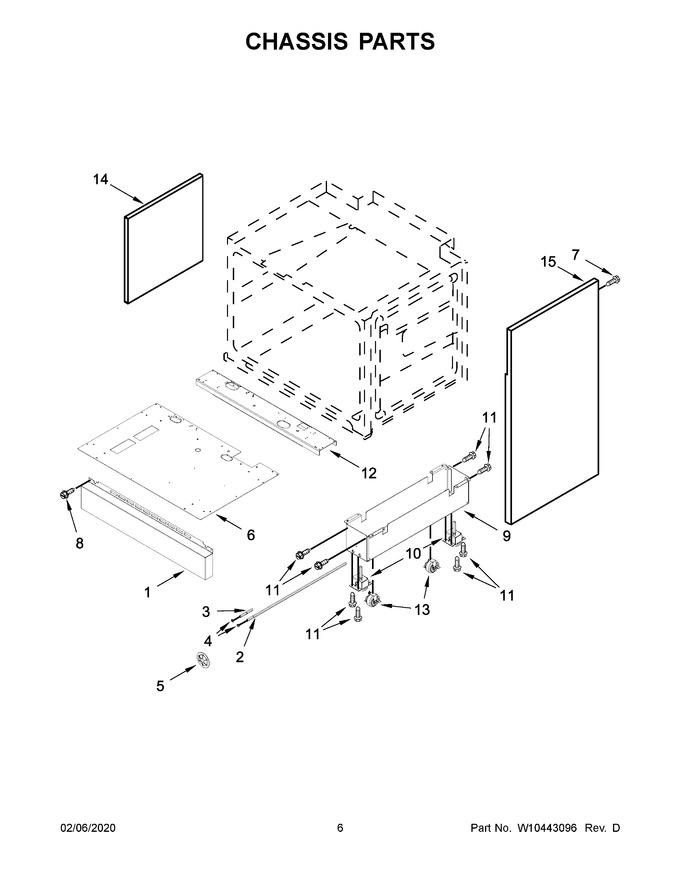

Diagram for JDRP436WP02
