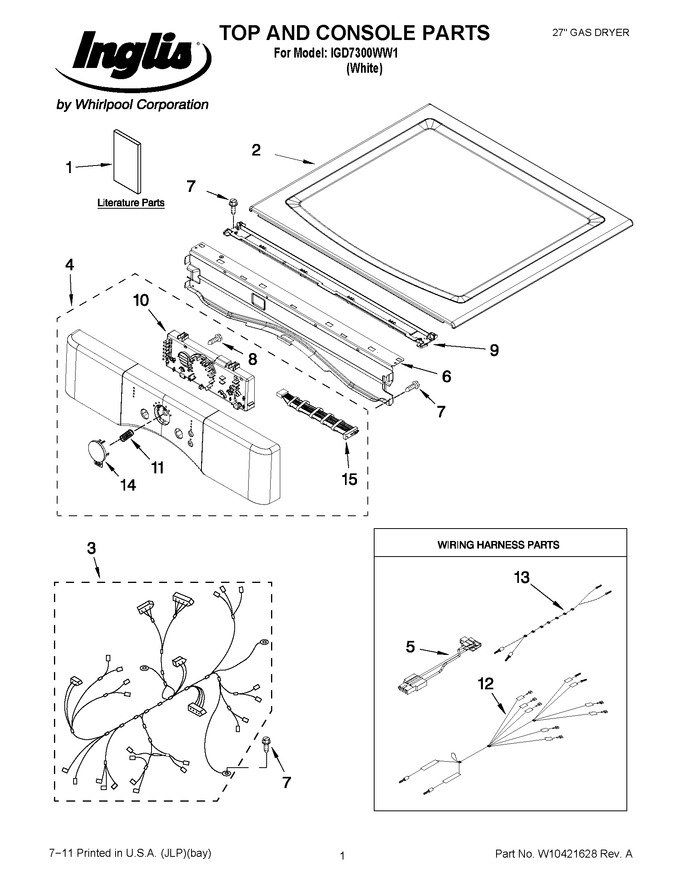

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10293911 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10253344 | Use & Care Guide |
|
- | |||||
| 1 | W10240584 | Installation Instructions |
|
- | |||||
| 1 | W10340328 | Tech Sheet |
|
- | |||||
| 2 | WPW10336080 | Top (Replaces: W10336080) |
|
$ 331.99 | |||||
| 3 | W10251443 | Harness, Main |
|
$ 304.56 | |||||
| 4 | W10252321 | Console Assembly |
|
$ 169.01 | |||||
| 5 | WP3406653 | Harness, Sensor (Replaces: 3406653) |
|
Immediately | $ 159.56 | ||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 7 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 8 | W10006580 | Screw, M3-1.12 X12 |
|
- | |||||
| 9 | WPW10266747 | Channel, Water (Replaces: W10266747) |
|
$ 73.96 | |||||
| 10 | W10215814 | User Interface |
|
$ 244.23 | |||||
| 11 | W10215807 | Spring, Button |
|
$ 22.02 | |||||
| 12 | WP3401850 | Harness, Gas (Replaces: 3401850) |
|
$ 255.13 | |||||
| 13 | W10110975 | Harness-moisture Sensor |
|
$ 226.67 | |||||
| 14 | W10212800 | Button, Cycle (Replaces: W10311352) |
|
$ 81.62 | |||||
| 15 | W10259049 | Cable, Ui |
|
$ 170.48 |
