SELECT A DIAGRAM
01 - Cooktop, Burner And Grate Parts

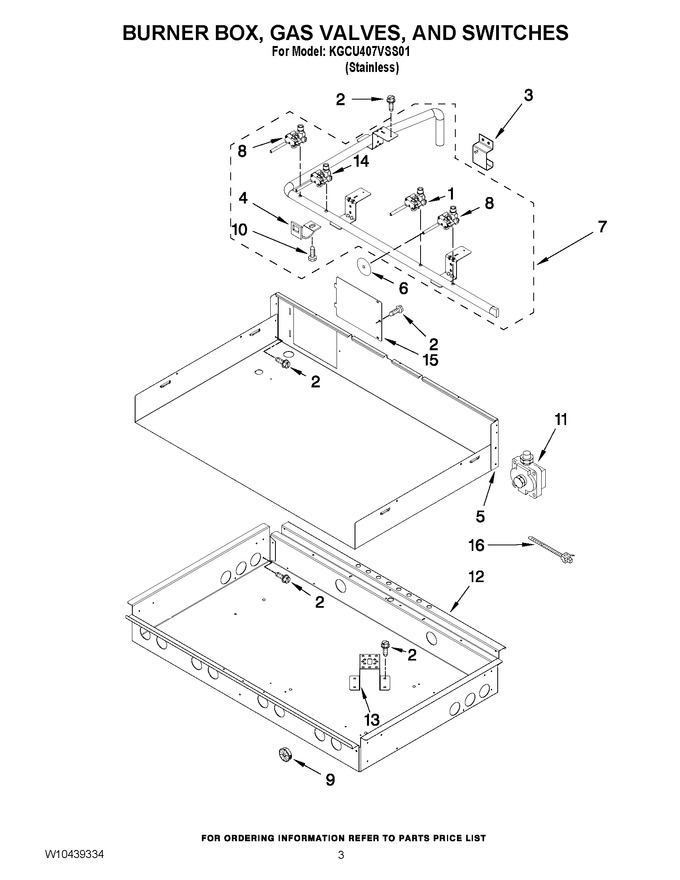

02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10385583 | Valve, Simmer (rr) 5k (Replaces: W10385583) |
|
Immediately | $ 298.89 | ||||
| 2 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 3 | 8285790 | Bracket, Mounting Orifice |
|
$ 77.27 | |||||
| 4 | W10189107 | Bracket, Valve |
|
- | |||||
| 5 | W10189157 | Cover, Burner Box |
|
- | |||||
| 6 | W10423373 | Seal, Switch Cover |
|
- | |||||
| 7 | W10402609 | Manifold Assy. |
|
$ 273.26 | |||||
| 8 | WPW10385582 | Valve, Gas (lr & Rf) 15k (Replaces: W10385582) |
|
Immediately | $ 306.77 | ||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 7.20 | |||||
| 10 | W10189140 | Screw, Valve Mtg |
|
$ 6.14 | |||||
| 11 | WP9759091 | Regulator, Pressure (Replaces: 9759091) |
|
Immediately | $ 306.39 | ||||
| 12 | W10371508 | Burner Box |
|
- | |||||
| 13 | W10369547 | Bracket, Burner |
|
- | |||||
| 14 | WPW10371235 | Valve, Gas (lf) 20k (Replaces: W10371235) |
|
Immediately | $ 298.94 | ||||
| 15 | W10115843 | Cover, Ignition |
|
- | |||||
| 16 | W11675299 | Cable Tie (Replaces: W10368807) |
|
$ 12.18 | |||||
| NI | W10353154 | Tubing, Gas Ct, Front Left |
|
Immediately | $ 155.50 | ||||
| NI | WPW10353133 | Tubing, Gas Ct Back (Replaces: W10353133) |
|
$ 157.40 | |||||
| NI | W10353152 | Tubing, Gas Ct Front Center |
|
$ 71.04 | |||||
| NI | W10353141 | Tubing, Gas Ct Front Right |
|
$ 157.64 | |||||
| NI | W10280797 | Tubing, Gas Ct, Back Ka Urso |
|
- |
