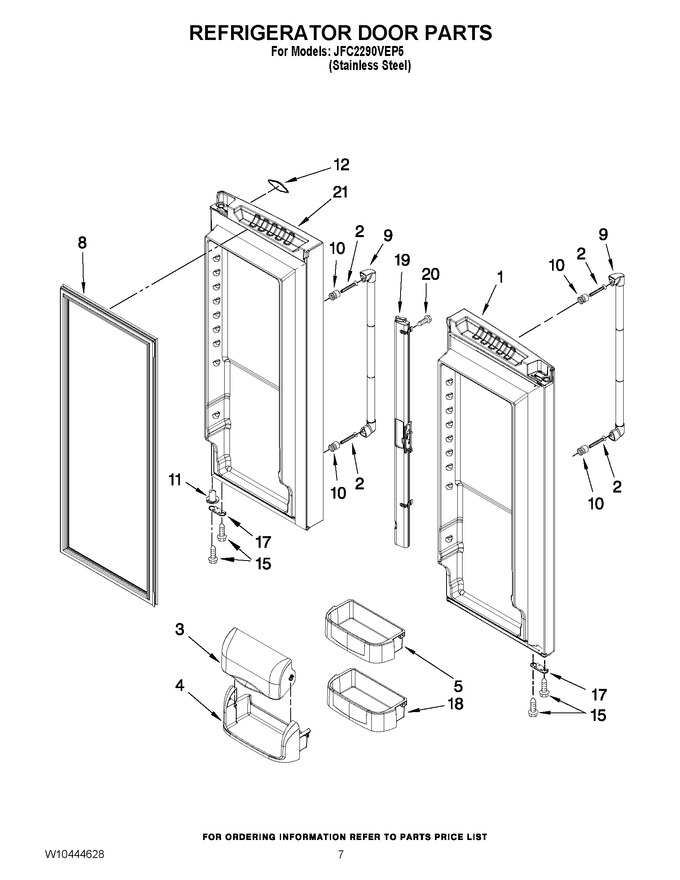

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Icemaker Parts


08 - Freezer Door Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13094731S		Door, Refrigerator (stainless, Lh)		Appelez-nous	-
2	W10290759		Screw				$ 5.83
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 79.21
5	WPW10119841		Bucket, Medium (3)   (Replaces: W10119841)			Immediately	$ 81.21
8	W10830046		Gasket, Door (apollo Grey)   (Replaces: W10163997)			Immediately	$ 240.04
9	W10210624N		Handle, Door (stainless)		Appelez-nous	-
10	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 11.30
11	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 55.31
12	W11636815		Nameplate   (Replaces: 13062401)				$ 40.82
15	WP98165		Screw   (Replaces: 12990504)				$ 7.71
17	WPW10120097		Stop, Door (apollo Grey)   (Replaces: W10120097)				$ 7.92
18	WPW10119846		Bucket, Gallon (2)   (Replaces: W10119846)			Immediately	$ 79.53
19	W11177238		Mullion, Door (apollo Grey)   (Replaces: 12732508AP)			Immediately	$ 198.75
20	W11311945		Screw   (Replaces: 12990204)				$ 13.25
21	13094739SQ		Door, Right (stainless)   (Replaces: 13094730S)				$ 937.94
