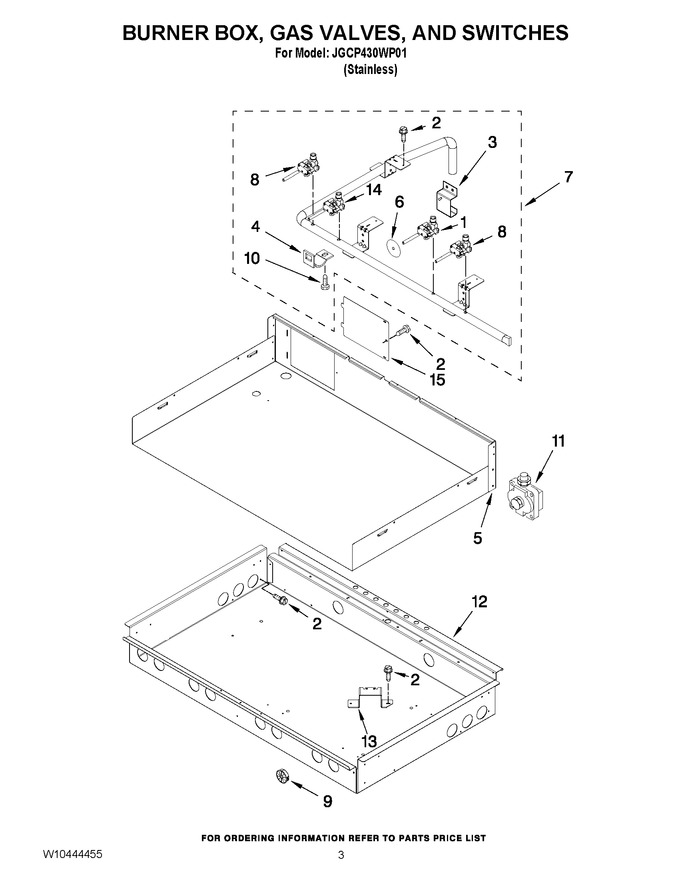

02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10385583 | Valve, Simmer (Replaces: W10385583) |
|
Immediately | $ 298.89 | ||||
| 2 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 3 | 8285790 | Bracket, Mounting Orifice |
|
$ 77.27 | |||||
| 4 | W10189107 | Bracket, Valve |
|
- | |||||
| 5 | W10189157 | Cover, Burner Box |
|
- | |||||
| 6 | W10189177 | Seal, Switch Cover |
|
$ 9.00 | |||||
| 7 | W10115891 | Assy, Manifold |
|
- | |||||
| 8 | WPW10385582 | Valve, Single Lr,rf (Replaces: W10385582) |
|
Immediately | $ 306.77 | ||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 7.20 | |||||
| 10 | W10189140 | Screw, Valve Mtg |
|
$ 6.14 | |||||
| 11 | WP9759091 | Regulator,pressure (Replaces: 9759091) |
|
Immediately | $ 306.39 | ||||
| 12 | W10371508 | Burner Box |
|
- | |||||
| 13 | W10369547 | Bracket, Burner |
|
- | |||||
| 14 | WPW10371235 | Valve, Gas (lf) (Replaces: W10371235) |
|
Immediately | $ 298.94 | ||||
| 15 | W10115843 | Cover, Ignition |
|
- | |||||
| NI | W10280797 | Tubing, Gas (rr) |
|
- | |||||
| NI | W10353154 | Tube, Frt Lft |
|
Immediately | $ 155.50 | ||||
| NI | W10353141 | Tube, Frt Rt |
|
$ 157.64 | |||||
| NI | WPW10353133 | Tube, Back (Replaces: W10353133) |
|
$ 157.40 | |||||
| NI | W10368335 | Tube, Rapid |
|
Immediately | $ 155.33 |
