01 - Cover Sheet

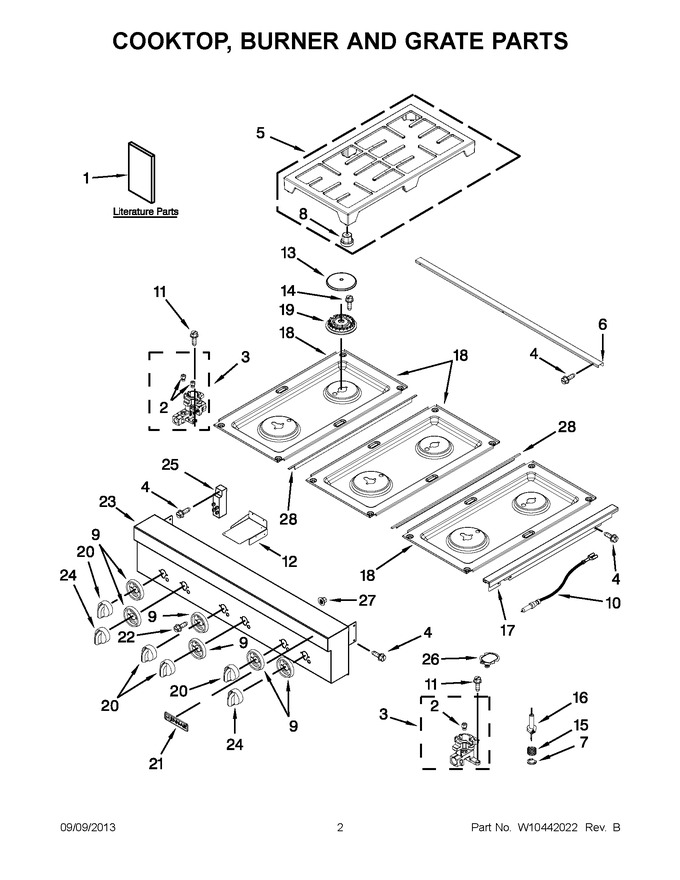

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switches
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10394706 | Installation Instructions |
|
- | |||||
| 1 | W10403307 | Tech Sheet |
|
- | |||||
| 1 | W10399390 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W10340424 | Orifice (17k) (left Front And Right Front) |
|
$ 84.30 | |||||
| 2 | W11051480 | Orifice (15k) (left Rear, Center Front, Right Rear) (Replaces: W10364221) |
|
$ 81.62 | |||||
| 2 | W10791075 | Orifice (5k) (center Rear) (Replaces: W10282663) |
|
$ 93.31 | |||||
| 3 | W10282659 | Orifice Holder (5k) (center Rear) |
|
$ 36.45 | |||||
| 3 | WPW10364556 | Orifice Holder (15k) (left Rear, Center Front, Right Rear) (Replaces: W10364556) |
|
$ 92.15 | |||||
| 3 | WPW10364555 | Orifice Holder (20k) (left Front And Right Front) (Replaces: W10364555) |
|
$ 102.08 | |||||
| 4 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 5 | W11344501 | Grate, Burner (black) (Replaces: W10276551) |
|
Immediately | $ 196.45 | ||||
| 6 | W10269217 | Trim, Island (stainless) |
|
$ 277.64 | |||||
| 7 | W10160825 | Clip, Electrode (dual) |
|
$ 52.85 | |||||
| 8 | 8186321 | Bumper, Grate (Replaces: 9760219) |
|
Immediately | $ 10.02 | ||||
| 9 | W10276494 | Bezel, Front |
|
$ 72.38 | |||||
| 10 | WPW10145991 | Electrode (Replaces: W10145991) |
|
Immediately | $ 76.02 | ||||
| 11 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 12 | W10498405 | Bracket, Spark Module |
|
- | |||||
| 13 | WPW10364463 | Cap, Burner (black (center Rear)) (Replaces: W10364463) |
|
Immediately | $ 50.27 | ||||
| 13 | WPW10256034 | Cap, Burner (black (left Front And Right Front)) (Replaces: W10256034) |
|
$ 124.37 | |||||
| 13 | WPW10256032 | Cap, Burner (black (left Rear, Center Front, Right Rear)) (Replaces: W10256032) |
|
Immediately | $ 79.54 | ||||
| 14 | W11404293 | Screw (Replaces: W10078270) |
|
Immediately | $ 13.27 | ||||
| 15 | W10256046 | Spring, Electrode (all But Center Rear) |
|
$ 10.40 | |||||
| 15 | 8286863 | Spring, Electrode (center Rear) |
|
$ 69.23 | |||||
| 16 | W10833887 | Electrode, Burner (all But Center Rear) (Replaces: W10256047) |
|
Immediately | $ 45.59 | ||||
| 16 | W10854967 | Wiring, Electrode (center Rear) (Replaces: 8286725) |
|
Immediately | $ 43.54 | ||||
| 17 | W10226014 | Trim, Side (black) |
|
$ 235.04 | |||||
| 18 | W10352966 | Cooktop (black (center)) |
|
$ 288.39 | |||||
| 18 | W10352969 | Cooktop (black (left)) |
|
$ 302.18 | |||||
| 18 | W10352967 | Cooktop (black (right)) |
|
$ 303.53 | |||||
| 19 | WPW10256027 | Spreader, Flame (15k) (left Rear, Center Front, Right Rear) (Replaces: W10256027) |
|
Immediately | $ 90.92 | ||||
| 19 | WPW10282515 | Spreader, Flame (5k) (center Rear) (Replaces: W10282515) |
|
Immediately | $ 134.88 | ||||
| 19 | W11106799 | Spreader, Flame (20k) (left Front And Right Front) (Replaces: W10495853) |
|
Immediately | $ 91.87 | ||||
| 20 | W10145454 | Knob (stainless (all Except Left Front & Right Front)) |
|
$ 42.25 | |||||
| 21 | WPW10159578 | Badge (pro-style) (Replaces: W10159578) |
|
Immediately | $ 79.69 | ||||
| 22 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 6.80 | |||||
| 23 | W11444601 | Panel, Control (stainless) (Replaces: W10145535) |
|
$ 688.71 | |||||
| 24 | W10145568 | Knob (stainless (left Front And Right Front)) |
|
$ 47.63 | |||||
| 25 | WPW10475147 | Module, Spark (Replaces: W10475147) |
|
Immediately | $ 346.50 | ||||
| 26 | 8286930 | Gasket, Orifice |
|
$ 86.16 | |||||
| 27 | 7103P166-60 | Nut |
|
$ 16.70 | |||||
| 28 | W10271524 | Trim, Cooktop (black) |
|
$ 191.11 |
