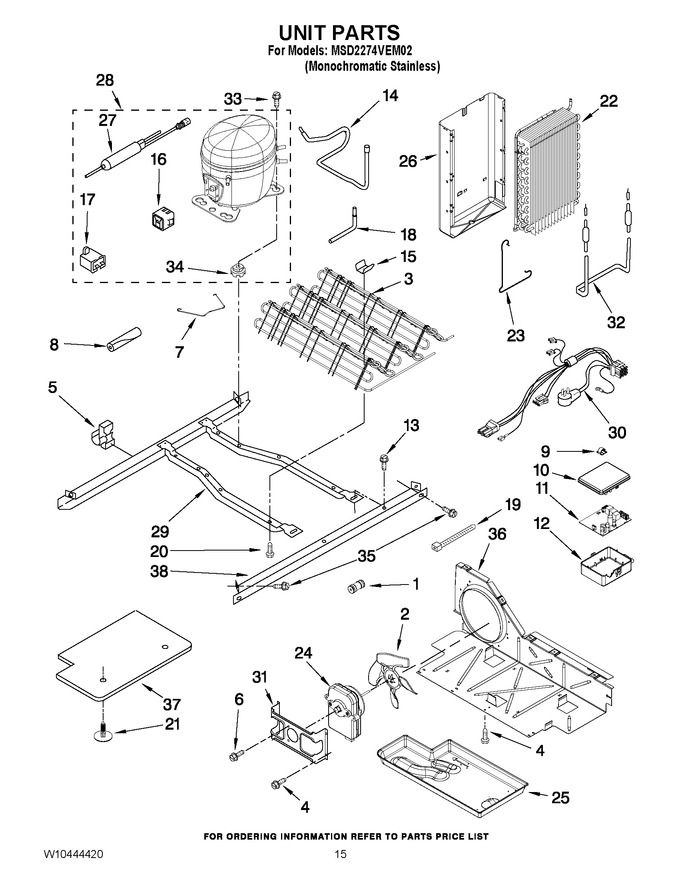

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10334458		Connector   (Replaces: W10334458)				$ 20.40
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 56.52
3	W10211163		Condenser Assembly				$ 254.57
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
5	W10812039		Clip, Wire   (Replaces: 2326941)				$ 10.01
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.09
7	W11661170		Clip, Retaining   (Replaces: W10174384)			Immediately	$ 10.68
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
9	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.33
10	2255624		Box Cover		Appelez-nous	-
11	W10259858		Elec. Control				$ 303.74
12	2326982		Control Box				$ 81.33
13	WP489427		Screw   (Replaces: 489427)				$ 7.06
14	W10210787		Tube Suction				$ 222.52
15	W10683556		Clip, Condenser(2)   (Replaces: 2311725)				$ 17.44
16	WPW10189190		Start Device, Combination (start Relay And Overload) For (service)   (Replaces: W10197427)			Immediately	$ 118.16
16	WPW10189190		Start Device, Combination (start Relay And Overload) For (production)   (Replaces: W10189190)			Immediately	$ 118.16
17	WPW10662129		Capacitor (service)   (Replaces: 2264017)			Immediately	$ 52.97
18	W10274306		Process Tube   (Replaces: W10171238)				$ 12.96
19	WPW10339879		Strap   (Replaces: 2263990)				$ 7.47
20	W11544659		Screw   (Replaces: 8281232)				$ 12.92
21	489396		Clip				$ 10.13
22	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 321.16
23	2161324		Clamp		Appelez-nous	-
24	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 111.76
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 142.34
26	WPW10194474		Heat Shield   (Replaces: W10194474)				$ 112.96
27	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 27.70
27	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 27.70
28	W10233961		Compressor (includes Items 16, 17, 27, & 34) (also Order 876765 Tube Kit)   (Replaces: W10189229)				$ 579.06
29	2304903		Unit Mounting Frame				$ 220.21
30	2310425		Unit, Harness (includes Power Cord)				$ 207.86
31	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 11.64
32	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 110.93
33	W11661574		Screw   (Replaces: 489473)				$ 12.86
34	W11661108		Grommet (4) (production)   (Replaces: 2183042)				$ 13.69
34	876811		Grommet (4) (service)   (Replaces: 1100826)				$ 7.01
35	WP489427		Screw (5)   (Replaces: 489427)				$ 7.06
36	W10332806		Air Baffle				$ 102.82
37	W11115203		Unit Cover, Bottom   (Replaces: 2304898)				$ 489.43
38	W10207512		Unit Mounting Rail		Appelez-nous	-
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 123.53
NI	876764		Valve, Access (3/16``)			Immediately	$ 86.33
NI	N/P		Refrigerant Charge (5.3 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access (5/16``)			Immediately	$ 121.04
