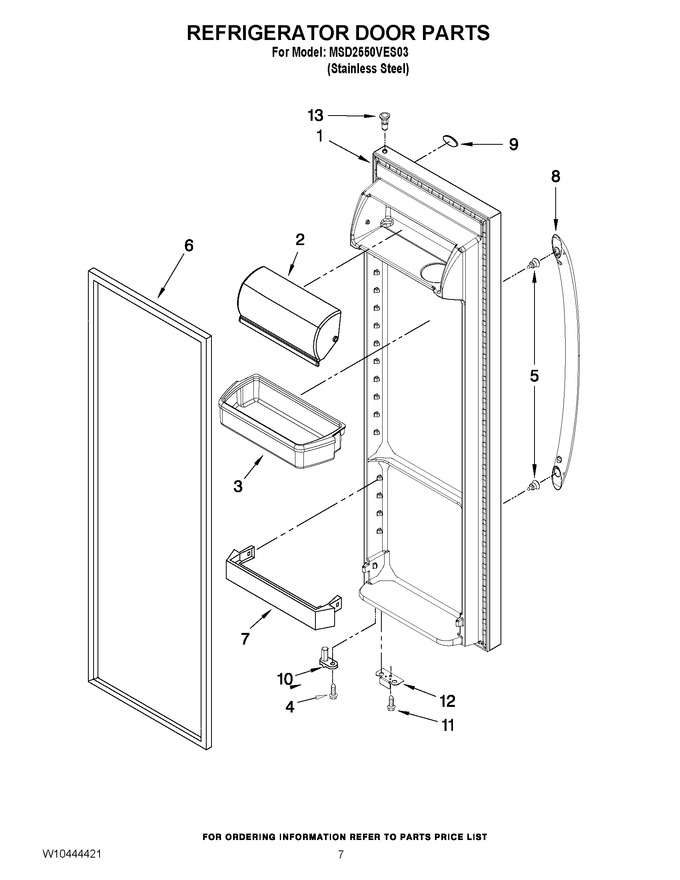

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10365665 | Refrigerator Door (includes Item No.6) (stainless Steel) (Replaces: W10365665) |
|
- | |||||
| 2 | WP2256101 | Compartment Door (Replaces: 2256101) |
|
Immediately | $ 80.48 | ||||
| 3 | WP2203828 | Shelf Bin (3) (Replaces: 2203828) |
|
$ 90.27 | |||||
| 4 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 5 | WPW10170540 | Stud, Handle (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 6 | 2159083 | Door Gasket, Magnetic (Replaces: 2309529) |
|
$ 299.48 | |||||
| 7 | WP2156022 | Shelf Bin (Replaces: 2156022) |
|
Immediately | $ 70.75 | ||||
| 8 | W11690159 | Handle (Replaces: 67006391) |
|
$ 156.38 | |||||
| 9 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 63.45 | ||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.48 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 12 | W10185571 | Bracket, Door Stop |
|
- | |||||
| 13 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 7.34 |
