Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Seviceable Part) Appelez-nous -
2 2215823 Clip, Air Duct   (Replaces: 2315163) Special Order $ 9.85

3 W11527119 Stud Assembly   (Replaces: W10173127) Appelez-nous -
4 W10191952 Screw (4) Special Order $ 5.65

5 WP2309758 Freezer Bin   (Replaces: 2309758) In-Stock Immediately $ 117.62

6 WPW10318952 Shelf, Wire   (Replaces: W10318952) In-Stock Immediately $ 83.23

7 WPW10318953 Shelf, Wire   (Replaces: W10318953) In-Stock Immediately $ 78.98

8 W11384469 Switch, Rocker Arm   (Replaces: 1118894) In-Stock Immediately $ 35.18

9 WPW10318949 Shelf, Wire   (Replaces: W10318949) Special Order $ 80.52

10 WPW10130299 Shelf Cup   (Replaces: W10130299) In-Stock Immediately $ 13.23

11 WPW10318951 Shelf, Wire   (Replaces: W10318951) Special Order $ 77.18

12 WPW10119935 Light Socket   (Replaces: 2155597) Special Order $ 95.54

13 W11679940 Light Bulb   (Replaces: W10311505) In-Stock Immediately $ 10.17

14 WP2155595 Light Lens   (Replaces: 2155595) Special Order $ 79.52

15 2160912 Wiring Cover Appelez-nous -
16 WP489478 Screw   (Replaces: 489478) Special Order $ 7.36


    View Diagram in Separate Window     Print Icon   Print Part List

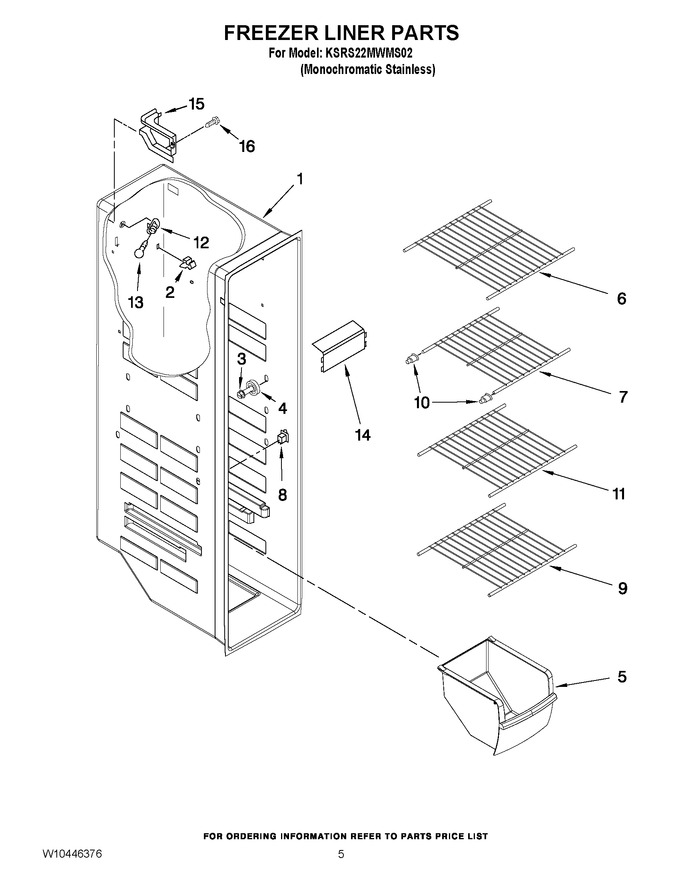

Diagram for KSRS22MWMS02
