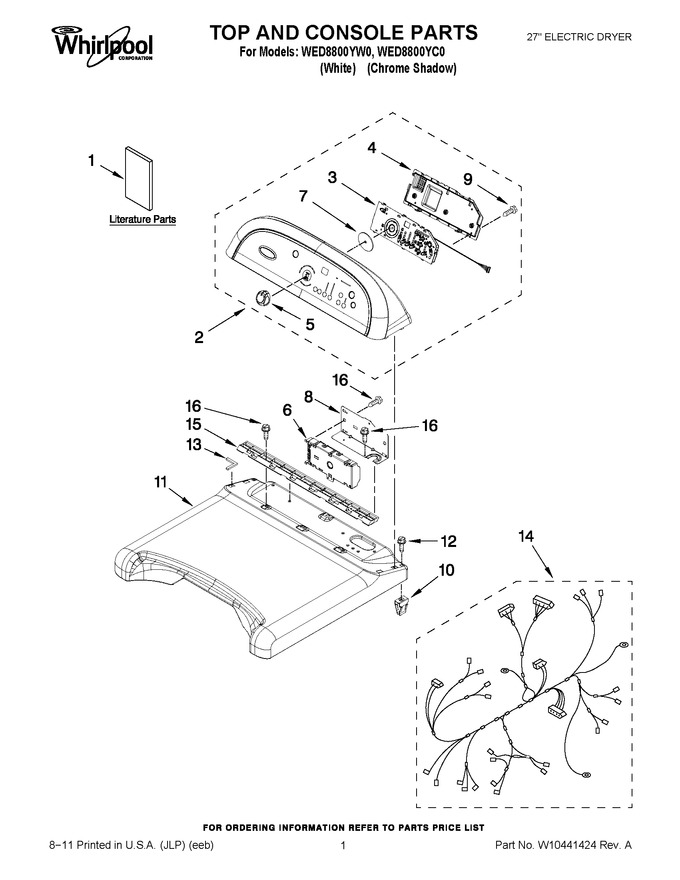

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10392124		Installation, Instruction		Appelez-nous	-
1	W10403269		Tech Sheet		Appelez-nous	-
1	W10398830		Guide, Use & Care		Appelez-nous	-
2	W10403679		Panel, Console (white)				$ 405.01
2	W10391502		Panel, Console (chrome Shadow)				$ 339.97
3	WPW10388673		User Interface   (Replaces: W10388673)				$ 282.50
4	8564265		Cover, Rear (ui Assembly)				$ 128.34
5	WPW10211335		Knob, Assembly   (Replaces: W10211335)				$ 53.78
6	WPW10432259		Control Electronic   (Replaces: W10368722)				$ 352.90
7	8572039		Seal, Ui		Appelez-nous	-
8	W10211337		Bracket, Machinecontroller		Appelez-nous	-
9	WP4449745		Screw, 6-19 X 1/2   (Replaces: W10003770)				$ 7.18
10	W10112673		Clip, Console				$ 8.78
11	W10211339		Top (white)		Appelez-nous	-
11	W10391495		Top (chrome Shadow)		Appelez-nous	-
12	W10131402		Screw, 8-18 X 1.37		Appelez-nous	-
13	W10185554		Foam, Top		Appelez-nous	-
14	W10392403		Harness, Electric		Appelez-nous	-
15	8558863		Bracket, Console				$ 33.78
16	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 75.34
