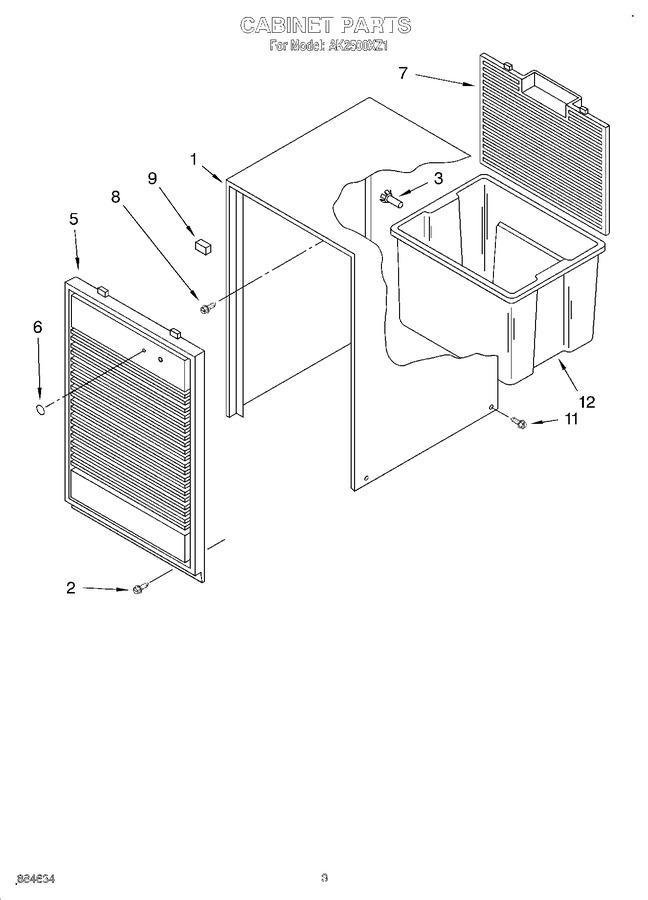

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 998820 | Cabinet |
|
- | |||||
| 2 | WPW10141625 | Screw, 8-32 X 1/2 (2) (Replaces: 489120) |
|
$ 20.00 | |||||
| 3 | 998813 | Retainer, Pin (2) (rear Grille) |
|
- | |||||
| 5 | 1162664 | Grille, Front Assembly |
|
- | |||||
| 6 | 998846 | Lens, Light |
|
- | |||||
| 7 | 998832 | Grille, Rear |
|
- | |||||
| 8 | WP488729 | Screw, No.8 X 3/8 (Replaces: 489073) |
|
Immediately | $ 7.45 | ||||
| 9 | 948584 | Spacer, Grille |
|
- | |||||
| 11 | 1158781 | Screw |
|
- | |||||
| 12 | 212643 | Sealer, Permagum (4-12`` Strips) |
|
Immediately | $ 86.78 | ||||
| 12 | 951901 | Pan, Condensate |
|
$ 80.76 | |||||
| 12 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 12 | 646753 | Cap, Condensate Pan |
|
- | |||||
| 12 | WP16123 | Washer, Condensate Pan (Replaces: 647338) |
|
$ 7.34 | |||||
| 12 | 799833 | Epoxy, Tube (aluminum Repair) |
|
- | |||||
| 12 | 505168 | Tape, No Drip (30`) Valve, Access |
|
- | |||||
| 12 | 978026 | 5/16``tube O.d. |
|
Immediately | $ 121.04 | ||||
| 12 | SF5538 | 3/8`` Tube O.d. (Replaces: 978027) |
|
$ 16.79 | |||||
| 12 | 978028 | 1/2`` Tube O.d. |
|
- | |||||
| 12 | 978029 | 5/8`` Tube O.d. |
|
$ 93.85 | |||||
| 12 | 978030 | 3/4`` Tube O.d. |
|
$ 123.53 | |||||
| 12 | 978865 | Seal, Ring (access Valve) (20 - Pack) |
|
- | |||||
| 12 | WP978025 | 1/4`` Tube O.d. (Replaces: 978025) |
|
Immediately | $ 99.46 |
