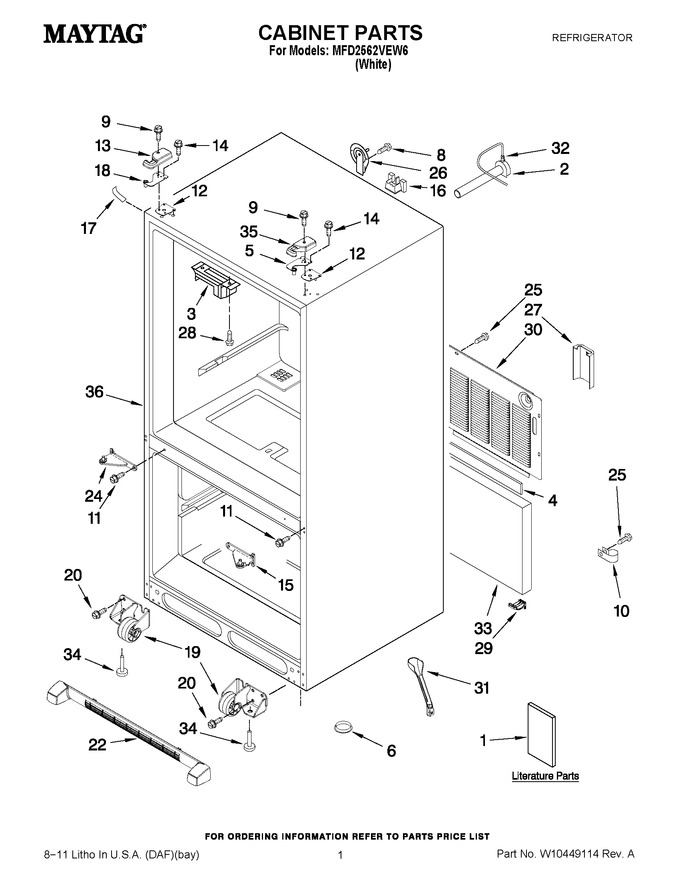

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10432494 | Tech Sheet |
|
- | |||||
| 1 | W10187813 | Tag, Energy |
|
- | |||||
| 1 | W10366206 | Owners Manual |
|
- | |||||
| 2 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 107.87 | ||||
| 3 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.39 | ||||
| 4 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 5 | W11592374 | Hinge, Top Right (Replaces: 12963205ED) |
|
Immediately | $ 28.71 | ||||
| 6 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 10 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 11 | W11573362 | Screw (6) (Replaces: 12992201) |
|
$ 13.25 | |||||
| 12 | 12999501 | Hinge Shim (left) |
|
$ 89.58 | |||||
| 12 | 12999502 | Hinge Shim (right) |
|
$ 90.54 | |||||
| 13 | WPW10337634 | Cover, Left Hinge (white) (Replaces: 12962301W) |
|
Immediately | $ 21.19 | ||||
| 14 | WP489349 | Owners Manual (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | 13000002WD | Hinge, Center (rt) (white) |
|
$ 144.89 | |||||
| 16 | 12777701 | Block, Filter (2) |
|
$ 7.17 | |||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 20.61 | |||||
| 18 | W11592375 | Hinge, Top Left (Replaces: 12963204ED) |
|
$ 28.73 | |||||
| 19 | W11820445 | Roller Assy.(right) (Replaces: W10275849) |
|
Immediately | $ 33.62 | ||||
| 19 | W11820444 | Roller Assy.(left) (Replaces: W10275850) |
|
Immediately | $ 33.62 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 22 | WPW10534154 | Grille, Toe (white) (Replaces: W10244559) |
|
$ 138.29 | |||||
| 24 | W10918113 | Hinge, Center (lt) (white) (Replaces: 13000001WD) |
|
$ 88.13 | |||||
| 25 | 67006425 | Screw (10) (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 27 | W10208593 | Guard-water Valve |
|
$ 14.14 | |||||
| 28 | WP7101P126-60 | Screw (2) (Replaces: 12990303) |
|
Immediately | $ 7.52 | ||||
| 29 | 12831101 | Sweep, Dual Tube |
|
$ 11.73 | |||||
| 30 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 187.19 | |||||
| 31 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 41.61 | ||||
| 32 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 10.44 | |||||
| 33 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 34 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 35 | 67005958 | Cover, Right Hinge (white) (Replaces: 12962302W) |
|
$ 19.41 | |||||
| 36 | N/P | Cabinet (not A Servicable Part) |
|
- |
