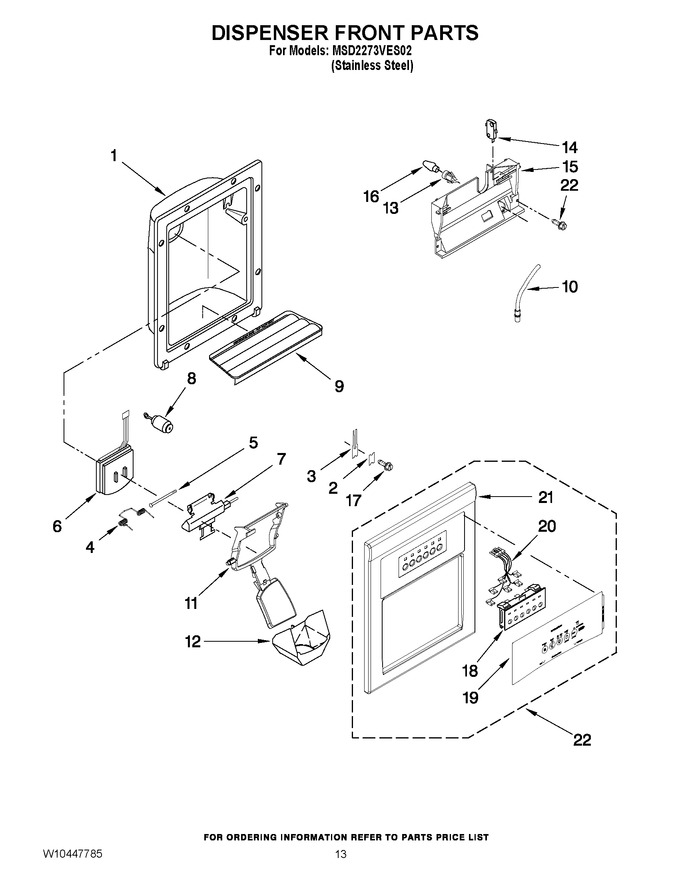

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 12.54 | |||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 12.36 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2304772) |
|
$ 87.40 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 15.31 | |||||
| 6 | 2328019 | Door, Ice |
|
$ 17.09 | |||||
| 7 | W10144021 | Door Mechanism Assembly |
|
$ 47.51 | |||||
| 8 | 2205686 | Mechanism, Delay |
|
- | |||||
| 9 | W10192687 | Grille, Overflow |
|
$ 75.15 | |||||
| 10 | W10144074 | Water Tube |
|
- | |||||
| 11 | W10184800 | Lever, Ice Dispenser |
|
- | |||||
| 12 | W10144020 | Guide, Ice |
|
$ 17.38 | |||||
| 13 | 2180200 | Lamp Holder |
|
$ 103.59 | |||||
| 14 | W10144092 | Switch |
|
$ 40.14 | |||||
| 15 | W10144016 | Bracket, Control |
|
$ 72.40 | |||||
| 16 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 17 | WP3400906 | Screw (Replaces: 489000) |
|
$ 9.05 | |||||
| 18 | W10144028 | Switch Assembly (Replaces: W10181070) |
|
$ 273.81 | |||||
| 19 | N/P | Overlay, Front (not Available Order No.22) |
|
- | |||||
| 20 | N/P | Wire Assembly (not Available Order No.22) |
|
- | |||||
| 21 | N/P | Front Cover Housing (not Available Order No.22) |
|
- | |||||
| 22 | W10190585 | Front Cover Assembly (includes Items 18, 19, 20 & 21) |
|
- |
