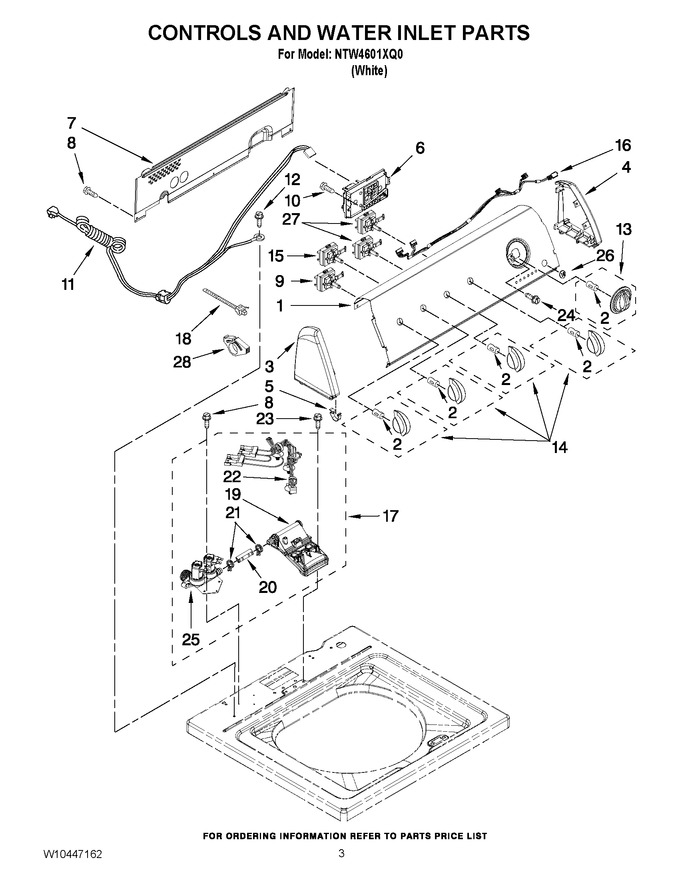

02 - Controls And Water Inlet Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10420386 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 3 | W10316303 | Cap, End (l.h.) (includes Item 5) |
|
- | |||||
| 4 | W10316302 | Cap, End (r.h.) (includes Item 5) |
|
- | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W10442494 | Control Unit Assembly, Machine & Motor |
|
$ 351.10 | |||||
| 7 | WPW10420985 | Panel, Console Rear Cover (Replaces: W10420985) |
|
$ 237.47 | |||||
| 8 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 9 | WPW10285517 | Switch, Rotary Encoder (Replaces: W10285517) |
|
$ 122.27 | |||||
| 10 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 11 | WPW10525194 | Cord, Power (Replaces: W10276649) |
|
$ 147.07 | |||||
| 12 | W10846509 | Screw, Power (cord Ground) (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | WPW10196507 | Knob, Timer (Replaces: W10196507) |
|
$ 54.78 | |||||
| 14 | W10196503 | Knob, Control |
|
$ 5.65 | |||||
| 15 | WPW10285512 | Switch, Rotary Encoder (Replaces: W10285512) |
|
Immediately | $ 171.42 | ||||
| 16 | WPW10291176 | Harness, Upper (Replaces: W10291176) |
|
$ 155.96 | |||||
| 17 | WPW10432353 | Inlet Assembly, Water (Replaces: W10432353) |
|
$ 228.10 | |||||
| 18 | WPW10339879 | Cable Tie (Replaces: W10339879) |
|
$ 7.47 | |||||
| 19 | WPW10441423 | Vacuum Break (Replaces: W10441423) |
|
$ 81.30 | |||||
| 20 | W10238347 | Hose, Vacuum Break |
|
$ 23.27 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 7.94 | ||||
| 22 | WPW10344775 | Harness, Valve (Replaces: W10344775) |
|
$ 154.36 | |||||
| 23 | WP8281163 | Screw, 8-16 X 1/2 (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 24 | WP3400818 | Screw, 8-18 X.20 (Replaces: 3400818) |
|
$ 7.93 | |||||
| 25 | WPW10356257 | Valve, Water Mixing (Replaces: W10356257) |
|
Immediately | $ 193.55 | ||||
| 26 | W10272474 | Pushbutton, Start |
|
- | |||||
| 27 | WPW10285511 | Switch, Rotary Encoder (Replaces: W10285511) |
|
Immediately | $ 163.89 | ||||
| 28 | WPW10663966 | Clamp (Replaces: W10348582) |
|
$ 201.83 |
