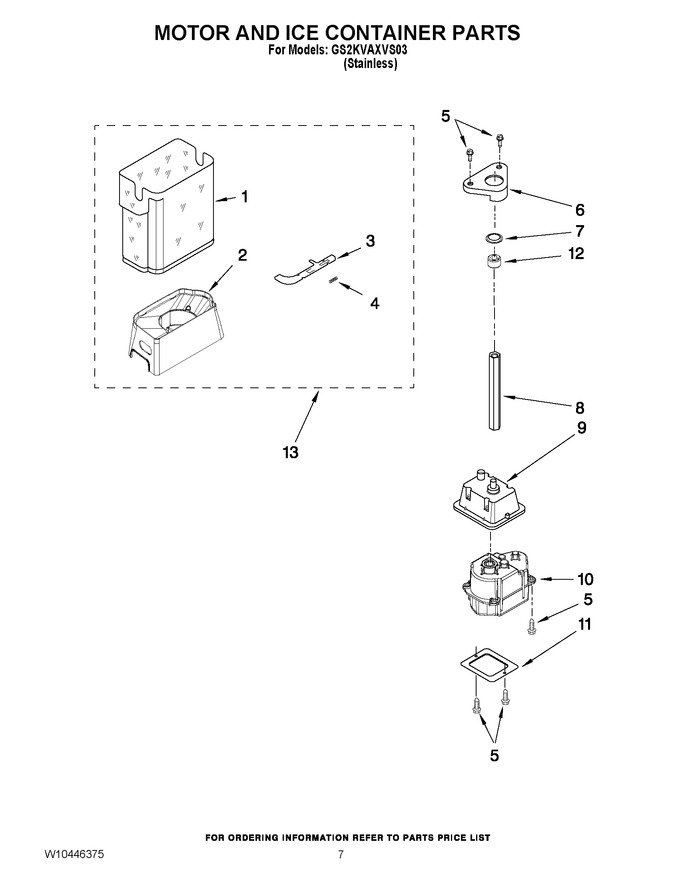

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10174540 | Ice Bin |
|
$ 68.80 | |||||
| 2 | W10176384 | Crusher Bin |
|
$ 99.84 | |||||
| 3 | 2317274 | Latch, Bin |
|
$ 96.56 | |||||
| 4 | WP2198608 | Spring, Latch (Replaces: 2198608) |
|
$ 6.80 | |||||
| 5 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 6 | WP2188919 | Holder (Replaces: 2188919) |
|
$ 6.80 | |||||
| 7 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 11.31 | ||||
| 8 | WP2188917 | Drive Shaft (Replaces: 2188916) |
|
$ 94.67 | |||||
| 9 | 2322488 | Enclosure, Motor |
|
$ 88.63 | |||||
| 10 | W10822606 | Dispenser, Motor (Replaces: 2322580) |
|
Immediately | $ 164.30 | ||||
| 11 | 2212305 | Cover |
|
- | |||||
| 12 | WP2315559 | Sleeve, Coupling (Replaces: 2315559) |
|
$ 76.87 | |||||
| 13 | W10197981 | Ice Container (complete) |
|
- |
