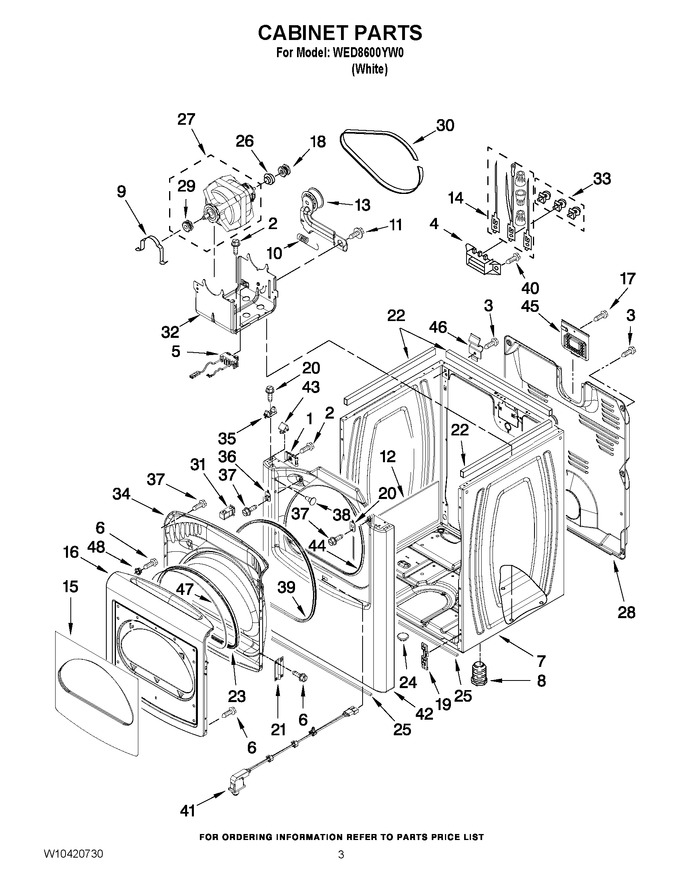

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10007520 | Clip, Ground |
|
$ 30.94 | |||||
| 2 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.43 | |||||
| 3 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 5 | WPW10411937 | Switch, Assembly (Replaces: W10314253) |
|
Immediately | $ 32.45 | ||||
| 6 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.30 | |||||
| 7 | W10223154 | Cabinet (Replaces: W10183827) |
|
$ 318.94 | |||||
| 8 | W10813918 | Foot, Dryer (Replaces: W10363894) |
|
Immediately | $ 12.33 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.40 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | W10123956 | Sound Panel |
|
- | |||||
| 13 | WPW10547292 | Pulley Assembly (Replaces: 8547160) |
|
Immediately | $ 39.58 | ||||
| 14 | 279318 | Terminal, Brass & Tinned (includes Illus. 33) |
|
Immediately | $ 95.44 | ||||
| 15 | 8578931 | Window, Door |
|
$ 164.08 | |||||
| 16 | 8571365 | Door, Outer |
|
$ 70.67 | |||||
| 17 | W10850756 | Screw, 10-32 X 1/2 (Replaces: 8533974) |
|
$ 7.38 | |||||
| 18 | WP8547171 | Pulley, Motor (Replaces: 8547171) |
|
$ 134.69 | |||||
| 19 | W10854425 | Clip (Replaces: 3394083) |
|
Immediately | $ 14.71 | ||||
| 20 | WPW10111888 | Plug, Strike (Replaces: W10111888) |
|
$ 26.72 | |||||
| 21 | WP8565018 | Hinge, Assembly (Replaces: 8579717) |
|
$ 103.81 | |||||
| 22 | WPW10157932 | Foam, Seal (Replaces: W10157932) |
|
Immediately | $ 7.61 | ||||
| 23 | W10076050 | Seal, Window |
|
$ 109.49 | |||||
| 24 | 8578560 | Hole, Plug |
|
$ 86.35 | |||||
| 25 | WPW10224768 | Foam, Seal (Replaces: W10224768) |
|
$ 68.12 | |||||
| 26 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 125.17 | ||||
| 27 | WPW10448896 | Motor, Assembly 60 Hz. (Replaces: 8547170) |
|
Immediately | $ 308.78 | ||||
| 28 | W10140148 | Panel, Rear |
|
$ 139.84 | |||||
| 29 | 8544743 | Pulley, Blower |
|
$ 74.26 | |||||
| 30 | WP8547157 | Belt, Drive (Replaces: 8547157) |
|
Immediately | $ 58.91 | ||||
| 31 | WPW10111905 | Catch, Door Assembly (Replaces: W10111905) |
|
Immediately | $ 6.83 | ||||
| 32 | WPW10308685 | Bracket, Motor (Replaces: W10308685) |
|
$ 122.06 | |||||
| 33 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 50.09 | ||||
| 34 | 8571357 | Door, Inner |
|
$ 143.15 | |||||
| 35 | WP8568303 | Locator, Snap Down (Replaces: 8568303) |
|
$ 7.15 | |||||
| 36 | W10295405 | Strike & Plate Assembly (Replaces: W10111906) |
|
$ 103.58 | |||||
| 37 | WP3400805 | Screw, 8-18 X 3/8 (Replaces: 3400805) |
|
$ 6.80 | |||||
| 38 | W10144494 | Plug, Hole |
|
$ 35.14 | |||||
| 39 | W10239307 | Seal, Door (Replaces: W10221653) |
|
$ 127.14 | |||||
| 40 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 41 | W10318609 | Door Switch Assembly |
|
$ 68.08 | |||||
| 42 | W10111883 | Front Panel |
|
- | |||||
| 43 | WP8576625 | Lock, Top Front (Replaces: 8576625) |
|
$ 6.84 | |||||
| 44 | W10044490 | Seal, Front Panel |
|
$ 30.65 | |||||
| 45 | W10110241 | Cover, Terminal Block |
|
$ 43.62 | |||||
| 46 | WP8066217 | Hinge, Top (Replaces: 238088) |
|
$ 7.39 | |||||
| 47 | 8558846 | Glass, Door |
|
$ 120.50 | |||||
| 48 | WP308499 | Palnut (Replaces: 308499) |
|
$ 6.57 | |||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
