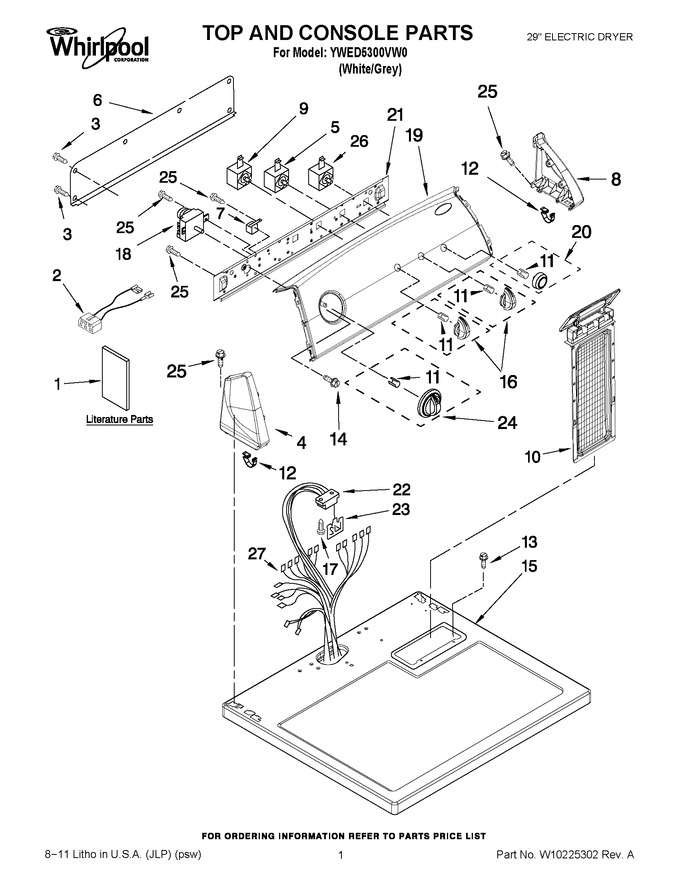

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10296135		Installation, Instructions		Appelez-nous	-
1	W10118081		Wiring Diagram		Appelez-nous	-
1	W10287573		Use & Care Guide		Appelez-nous	-
2	W10113080		Wire, Jumper (buzzer On/off)		Appelez-nous	-
3	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 6.80
4	WP8565957		Cap, End (l.h.)   (Replaces: 8566035)				$ 58.28
5	WP3405156		Switch, Rotary   (Replaces: 3405156)				$ 137.51
6	W10103406		Panel, Rear Console				$ 121.78
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	WP8565954		Cap, End (r.h.)   (Replaces: 8566032)				$ 59.26
9	WP8578352		Switch, Temperature   (Replaces: 8578352)				$ 214.07
10	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	3400859		Screw, Ground   (Replaces: 8533951)				$ 12.49
15	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 314.33
16	W10034380		Knob, Control				$ 25.06
17	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
18	WP8566184		Timer, 60 Hz.   (Replaces: 8566184)			Immediately	$ 263.09
19	W10280175		Panel, Control		Appelez-nous	-
20	WPW10034790		Knob, Push To Start   (Replaces: W10034790)				$ 52.03
21	8566052		Bracket, Control		Appelez-nous	-
22	3391885		Connector, Edge				$ 81.65
23	WPW10476828		Control, Electronic   (Replaces: 8558178)			Immediately	$ 296.94
24	W10034750		Timer Knob Assembly				$ 28.27
25	WP90767		Screw, 8-18 X 3/8   (Replaces: 3348629)			Immediately	$ 7.43
26	WP3398095		Switch, Push To Start   (Replaces: 3398095)			Immediately	$ 83.59
27	W10111401		Harness, Wiring				$ 54.10
