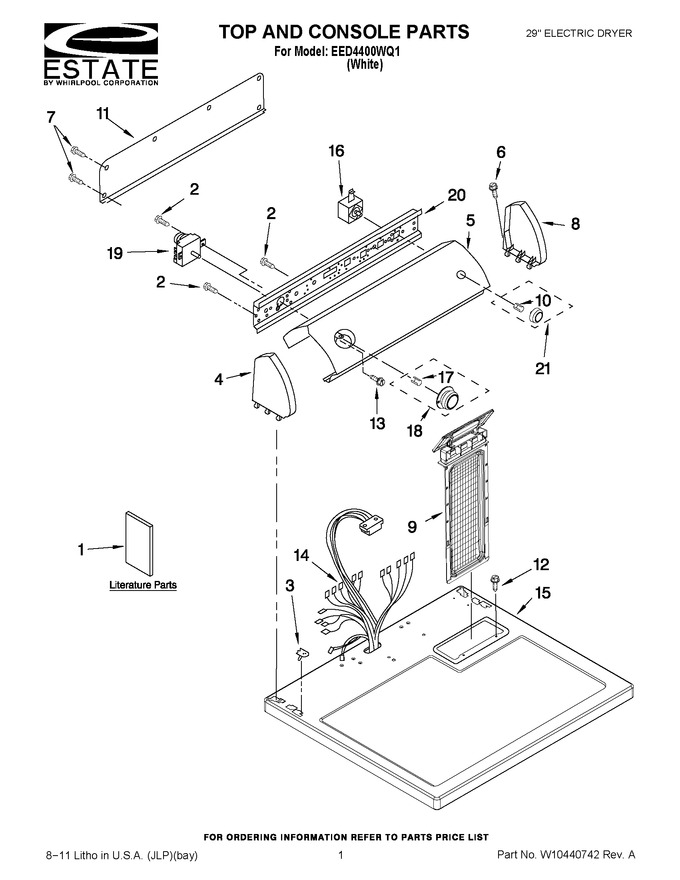

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10287575 | Guide, Use & Care |
|
- | |||||
| 1 | W10096987 | Installation, Instruction |
|
- | |||||
| 1 | 8576793 | Wiring Diagram |
|
- | |||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 3 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 6.98 | |||||
| 4 | 279960 | Cap, End (l.h.) (Replaces: 8274437) |
|
$ 78.81 | |||||
| 5 | W10238702 | Panel, Control |
|
$ 173.68 | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.36 | |||||
| 7 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 8 | 279960 | Cap, End (r.h.) (Replaces: 8274434) |
|
$ 78.81 | |||||
| 9 | W11778253 | Screen, Lint (Replaces: 8558463) |
|
Immediately | $ 49.17 | ||||
| 10 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 11 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 121.78 | |||||
| 12 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 13 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 12.49 | |||||
| 14 | WPW10450292 | Harness, Wiring (Replaces: 8576500) |
|
$ 251.39 | |||||
| 15 | 8557930 | Top |
|
- | |||||
| 16 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 23.99 | ||||
| 17 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 18 | WP8557455 | Knob, Timer (Replaces: 8538953) |
|
$ 53.65 | |||||
| 19 | WP8299778 | Timer, 60 Hz. (Replaces: 8299778) |
|
Immediately | $ 242.93 | ||||
| 20 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 21 | 8538959 | Knob, Push-to-start |
|
$ 25.38 |
