SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts

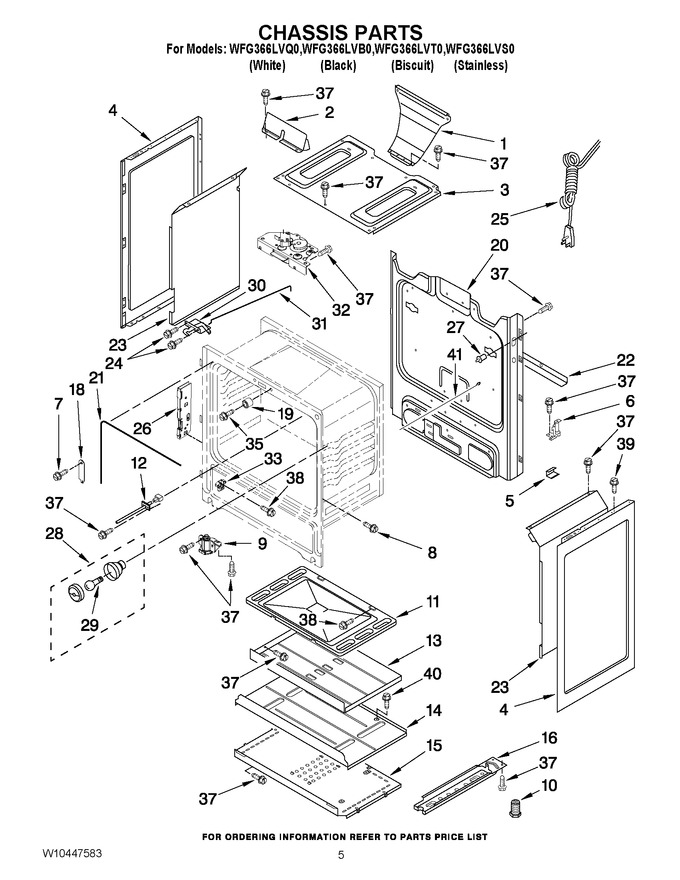

04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11457094		Flue Box   (Replaces: W10153186)				$ 142.02
2	WP8272747		Shield, Flue   (Replaces: 8272747)				$ 67.06
3	W11379351		Burner Box   (Replaces: 8273036)				$ 57.77
4	W11730303		Panel, Side (black)   (Replaces: 8053832)			Immediately	$ 160.65
4	WPW10575396		Panel, Side (white)   (Replaces: 8053830)				$ 182.19
4	W10162246		Panel, Side (biscuit)   (Replaces: 8272519)				$ 185.32
5	W10137382		Clip, Rail			Immediately	$ 43.58
6	8523249		Bracket, Manifold Mounting		Appelez-nous	-
7	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
8	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
9	WP3196037		Assembly, Foot   (Replaces: 3196037)				$ 78.41
10	WPW10058460		Foot, Rear   (Replaces: W10058460)			Immediately	$ 7.42
11	W11730226		Bottom, Oven   (Replaces: 3195097)				$ 207.95
12	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 96.15
13	8053967		Baffle, Burner				$ 284.36
14	8053969		Shield, Heat				$ 101.74
15	8053968		Shield, Lower		Appelez-nous	-
16	W11818353		Rail, Base   (Replaces: 9760314)				$ 56.39
18	9761517		Clip, Door Mounting				$ 43.30
19	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 50.45
20	W10222733		Back, Main		Appelez-nous	-
21	W11542153		Seal, Oven   (Replaces: 8522416)			Immediately	$ 45.18
22	8053971		Brace, Main Back				$ 7.82
23	9761448		Retainer, Insulation (right)		Appelez-nous	-
23	9761449		Retainer, Insulation (left)				$ 300.16
24	W11169708		Screw   (Replaces: 3196560)				$ 13.36
25	W11582239		Cord, Power   (Replaces: 9757891)				$ 15.83
26	W10647259		Receiver, Hinge   (Replaces: 9760407)			Immediately	$ 8.39
27	WP9757262		Switch, Door   (Replaces: 9757262)			Immediately	$ 146.71
28	W11594027		Assembly, Light Socket   (Replaces: 3196701)			Immediately	$ 78.31
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	WP9761013		Latch, Door   (Replaces: 9761013)				$ 230.72
31	W10078370		Rod, Latch				$ 85.72
32	WPW10107820		Assembly, Latch Motor   (Replaces: W10107820)				$ 278.60
33	WPW10114344		Glide, Drawer   (Replaces: W10114344)			Immediately	$ 7.71
35	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 7.36
37	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
38	W10379120		Screw		Appelez-nous	-
39	98008169		Screw (biscuit)   (Replaces: 8281194)		Appelez-nous	-
39	WP3196175		Screw (white)   (Replaces: 3196165)			Immediately	$ 6.80
40	WP7101P246-60		Screw   (Replaces: 3196177)				$ 7.42
41	9757239		Rod, Door Switch Rear Mount				$ 86.73
NI	W10174397		Wht/blk/biscuit				$ 38.13
NI	W11684915		Insulation, Wrap   (Replaces: 8524099)				$ 111.28
NI	W11688737		Insulation, Back   (Replaces: W10180437)				$ 110.46
NI	W10182346		Insulation, Side Panel				$ 77.83

    View Diagram in Separate Window       Print Part List
