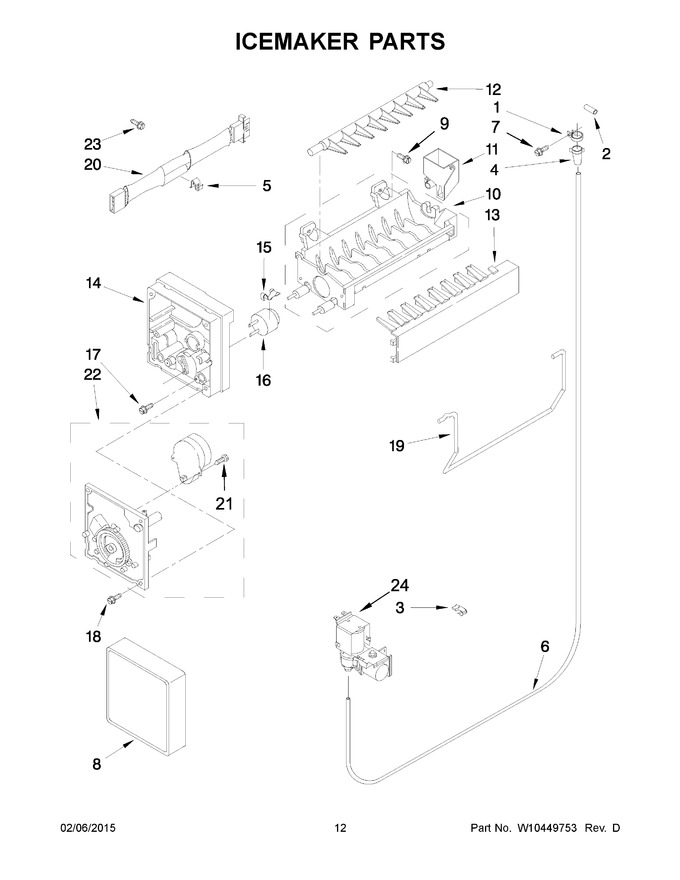

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 10.96 | |||||
| 2 | 2174755 | Tube, Water Inlet |
|
$ 22.18 | |||||
| 3 | 2210495 | Clip, Water Valve |
|
- | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.41 | |||||
| 5 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 6 | WPW10426709 | Tube, Water (thick Wall) (Replaces: W10426709) |
|
$ 133.17 | |||||
| 7 | WP488787 | Screw (Replaces: 488886) |
|
$ 10.13 | |||||
| 8 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 7.94 | ||||
| 9 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 10 | WPW10190929 | Assembly, Mold And Heater (Replaces: W10122527) |
|
$ 210.17 | |||||
| 11 | W11676540 | Cup, Water Fill (Replaces: W10435665) |
|
$ 20.39 | |||||
| 12 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 13 | WPW10122563 | Stripper, Ice (Replaces: W10122563) |
|
$ 89.48 | |||||
| 14 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 98.82 | |||||
| 15 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 16 | WP627985 | Thermostat (Replaces: W10290336) |
|
$ 103.18 | |||||
| 17 | 8533917 | Screw |
|
$ 12.64 | |||||
| 18 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 19 | WPW10474785 | Arm, Shut Off (Replaces: W10474785) |
|
Immediately | $ 54.22 | ||||
| 20 | W11643622 | Assembly, Ice Maker Wire (Replaces: W10309400) |
|
$ 25.63 | |||||
| 21 | 489136 | Screw |
|
$ 9.72 | |||||
| 22 | 8201515 | Assembly, Module And Motor (Replaces: W10223929) |
|
Immediately | $ 143.80 | ||||
| 23 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 24 | WPW10279909 | Valve, Inlet (Replaces: W10279909) |
|
$ 170.90 | |||||
| 100 | 4317943 | Icemaker Assembly (complete) (Replaces: W10190952) |
|
Immediately | $ 165.11 |
