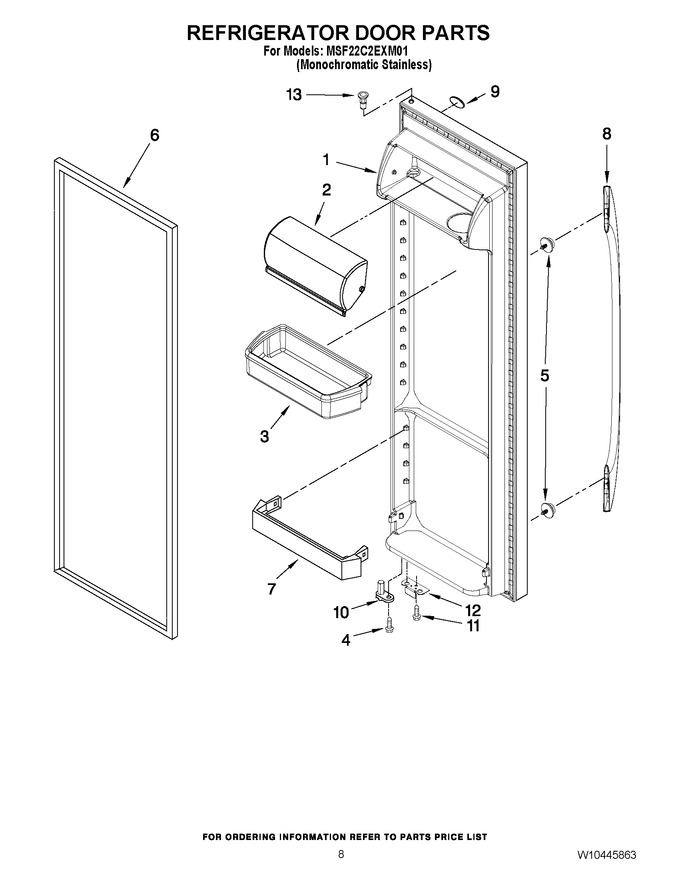

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10382674 | Refrigerator Door (includes Item No.6) (mono Stainless) |
|
- | |||||
| 2 | WP2256101 | Compartment Door (Replaces: 2256101) |
|
Immediately | $ 80.48 | ||||
| 3 | WPW10321304 | Shelf Bin (Replaces: W10321304) |
|
Immediately | $ 40.46 | ||||
| 4 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 5 | WPW10288153 | Screw (Replaces: W10129563) |
|
Immediately | $ 8.69 | ||||
| 6 | W10136732 | Door Gasket, Magnetic (Replaces: 2327161) |
|
Immediately | $ 325.08 | ||||
| 7 | WP2156022 | Shelf Bin (Replaces: 2156022) |
|
Immediately | $ 70.75 | ||||
| 8 | WPW10170743 | Handle (Replaces: W10170743) |
|
$ 328.97 | |||||
| 9 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 63.45 | ||||
| 10 | WP2182179 | Door Closer Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.48 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 12 | W10219811 | Bracket, Door Stop |
|
$ 25.43 | |||||
| 13 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 7.34 |
