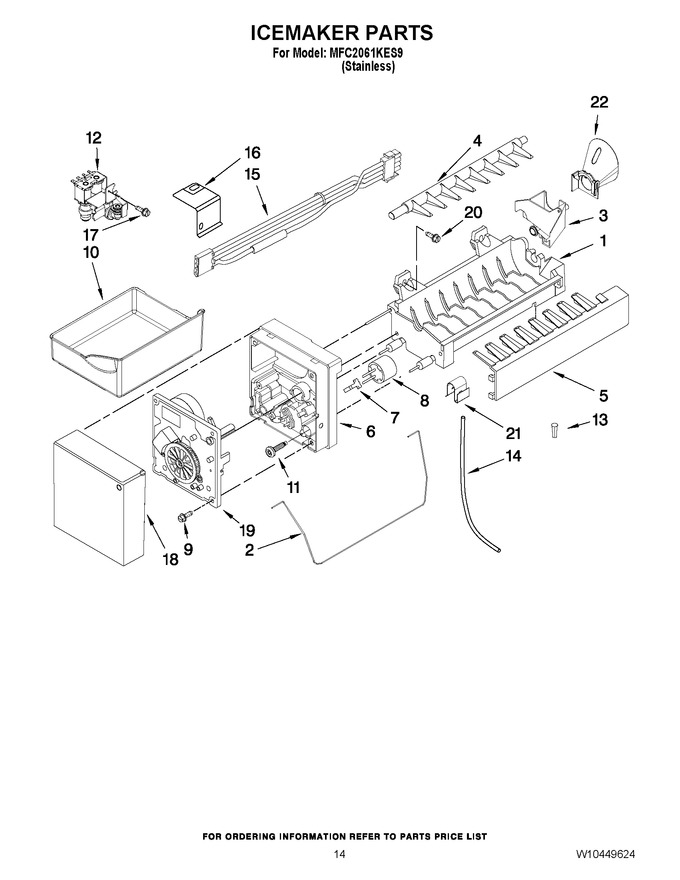

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10190929 | Mold & Heater Assembly (also Order 542638 Grease) (Replaces: W10122527) |
|
$ 210.17 | |||||
| 2 | W11285509 | Arm, Shutoff (Replaces: W10202524) |
|
$ 88.83 | |||||
| 3 | W10122561 | Cup, Fill (Replaces: 628515) |
|
$ 26.24 | |||||
| 4 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 5 | WP2182124 | Ice Stripper (Replaces: 2182124) |
|
$ 81.32 | |||||
| 6 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 98.82 | |||||
| 7 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 8 | WP627985 | Thermostat (also Order 542369 Cement) (Replaces: 628397) |
|
$ 103.18 | |||||
| 9 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 10 | WPW10171529 | Pan, Ice (Replaces: W10171529) |
|
Immediately | $ 170.60 | ||||
| 11 | 8533917 | Screw |
|
$ 12.64 | |||||
| 12 | WP12544124 | Valve, Water Inlet (Replaces: 12544124) |
|
Immediately | $ 177.51 | ||||
| 13 | WPA3223101 | Insert, Tube (Replaces: A3223101SP) |
|
$ 7.39 | |||||
| 14 | W11120581 | Tubing, Plastic (Replaces: B5705333SP) |
|
$ 112.44 | |||||
| 15 | WPD7813010 | Harness, Ice Maker (Replaces: D7813011) |
|
Immediately | $ 66.57 | ||||
| 16 | WP2256087 | Bracket, Icemaker (Replaces: 2256086) |
|
$ 87.89 | |||||
| 17 | WP489128 | Screw (Replaces: 12991604) |
|
$ 10.26 | |||||
| 18 | WPW10289690 | Cover (Replaces: 12582501) |
|
$ 7.94 | |||||
| 19 | 8201515 | Module Assembly (Replaces: W10223929) |
|
Immediately | $ 143.80 | ||||
| 20 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 21 | WP628379 | Clip (Replaces: 628379) |
|
$ 9.99 | |||||
| 22 | 12918001 | Funnel, Fill Tube |
|
Immediately | $ 11.73 | ||||
| 100 | D7824706Q | Icemaker Assembly (Replaces: W10190978) |
|
Immediately | $ 150.62 | ||||
| NI | 10244904 | Coupling |
|
$ 25.37 |
