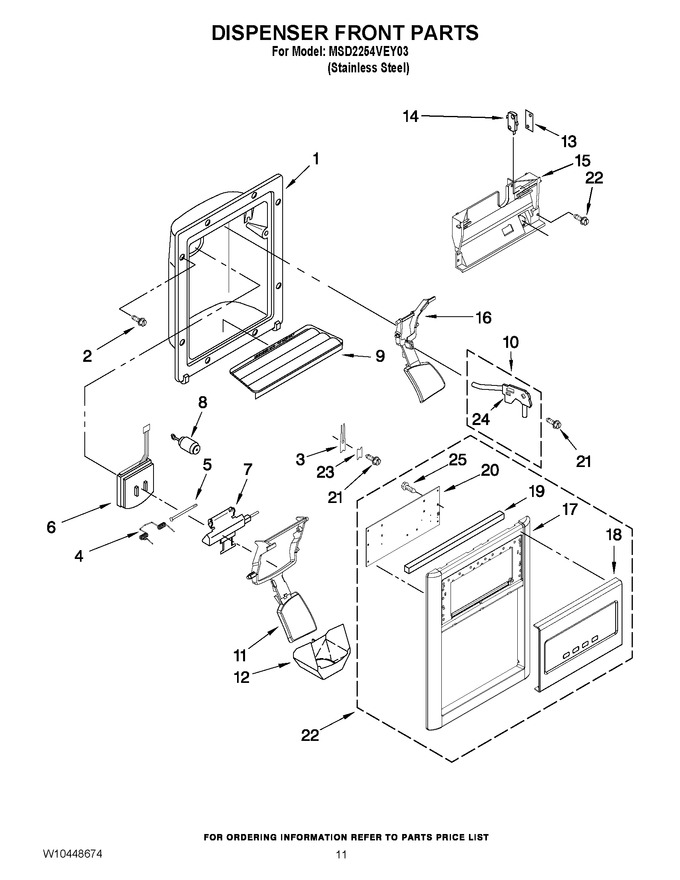

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 11.12 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2304772) |
|
$ 78.66 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 13.78 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 24.15 | ||||
| 7 | 2304355 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Mechanism, Delay |
|
- | |||||
| 9 | W10171992 | Grille, Overflow |
|
$ 83.81 | |||||
| 10 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces: 2304317) |
|
$ 126.76 | |||||
| 11 | 2203562AP | Lever, Ice Dispenser |
|
$ 42.25 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.02 | ||||
| 13 | 625834 | Spacer, Switch (2) |
|
$ 7.99 | |||||
| 14 | WP2162361 | Switch (2) (Replaces: 2162361) |
|
Immediately | $ 25.84 | ||||
| 15 | W10728484 | Bracket, Control (Replaces: W10206221) |
|
$ 54.17 | |||||
| 16 | 2203561AP | Lever, Water Dispenser |
|
- | |||||
| 17 | N/P | Bezel, Disp (not Available Order No.22) |
|
- | |||||
| 18 | N/P | Fascia, Disp (not Available Order No.22) |
|
- | |||||
| 19 | 2305571 | Gasket |
|
$ 24.70 | |||||
| 20 | 2321748 | Control Board, Lcd |
|
$ 224.49 | |||||
| 21 | WP3400906 | Screw (Replaces: 489000) |
|
$ 8.15 | |||||
| 22 | W10170392 | Front Cover Assembly (includes Items 17, 18, 19, & 20) |
|
$ 466.55 | |||||
| 23 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.29 | |||||
| 24 | WP2304673 | Bracket, Dispenser (Replaces: 2304673) |
|
$ 14.74 | |||||
| 25 | 2006254 | Screw, Board (Replaces: 489214) |
|
$ 12.41 |
