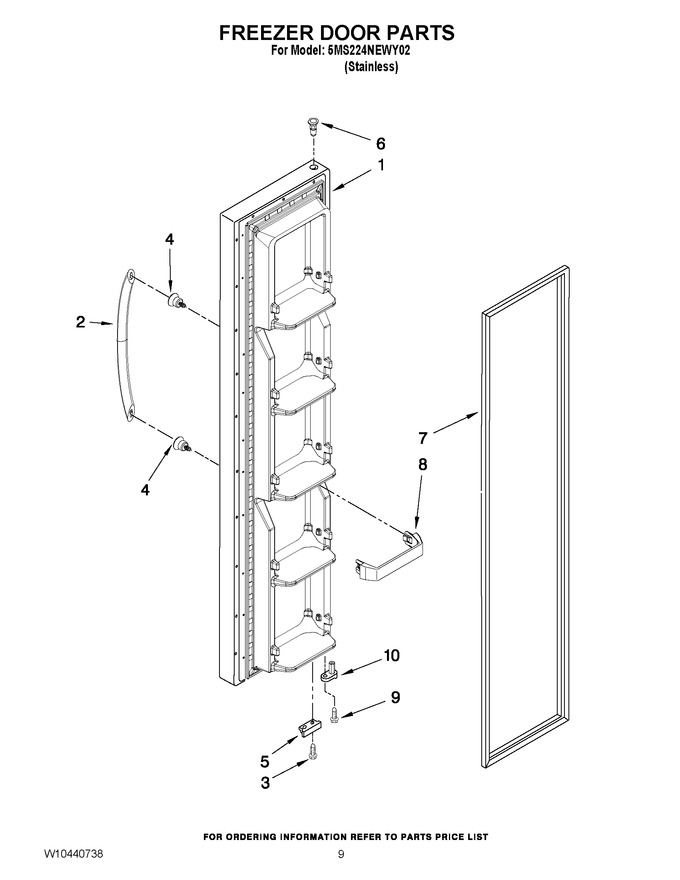

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10365630		Freezer Door (includes Item No.7) (stainless)   (Replaces: W10365630)		Appelez-nous	-
2	W11690159		Handle   (Replaces: 67006391)				$ 156.38
3	WP489483		Screw   (Replaces: 489420)				$ 10.27
4	WPW10170540		Screw, Mounting   (Replaces: W10170540)			Immediately	$ 8.69
5	W10185566		Bracket, Door Stop		Appelez-nous	-
6	WP2182181		Thimble-top   (Replaces: 2308091)				$ 7.34
7	W10136733		Door Gasket, Magnetic (service)   (Replaces: 2327162)				$ 323.08
8	WP2309717		Trivet   (Replaces: 2309717)				$ 52.78
9	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
10	WP2182179		Door Closer Upper Cam   (Replaces: 2182178)			Immediately	$ 6.48
