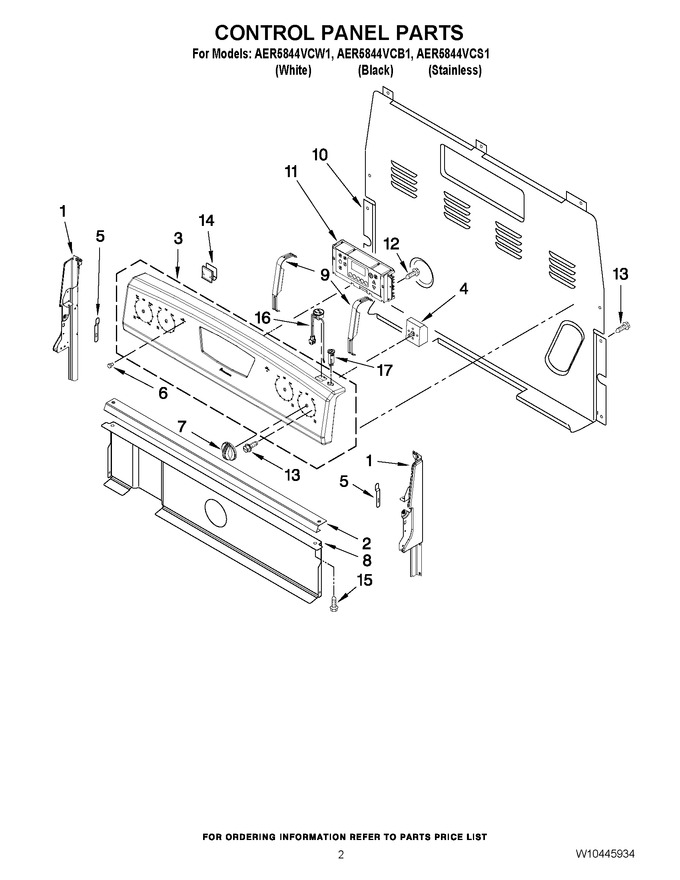

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Lh) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219370 | Endcap (white Rh) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1 | W11219664 | Endcap (black Lh) (Replaces: W10184437) |
|
$ 138.45 | |||||
| 1 | W11219665 | Endcap (black Rh) (Replaces: W10184438) |
|
$ 40.65 | |||||
| 2 | W10525121 | Bracket, Console (Replaces: W10182322) |
|
$ 88.97 | |||||
| 3 | W10170035 | Panel, Control (stainless) |
|
- | |||||
| 3 | W10170033 | Panel, Control (white) |
|
- | |||||
| 3 | W10170034 | Panel, Control (black) |
|
$ 71.36 | |||||
| 4 | WP3149400 | Switch, Infinite (rf) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 4 | 5500-287 | Switch, Infinite (rr) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 4 | WPW10434452 | Switch, Infinite (lf (dual)) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 5 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | W10119706 | Knob, Infinite (black) |
|
$ 47.61 | |||||
| 7 | W10119705 | Knob, Infinite (white) |
|
Immediately | $ 47.85 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | W11230932 | Brkt, Mntg Eoc (Replaces: W10138683) |
|
Immediately | $ 76.33 | ||||
| 10 | WP8272473 | Cover, Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | WPW10476695 | Control, Range (white) (Replaces: W10271723) |
|
$ 473.90 | |||||
| 11 | WPW10476695 | Control, Range (black) (Replaces: W10271724) |
|
$ 473.90 | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 13 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 14 | WP8273564 | Clip, Cover (Replaces: 8273564) |
|
$ 11.39 | |||||
| 15 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 7.36 | ||||
| 15 | 3196166 | Screw (white) |
|
$ 6.62 | |||||
| 16 | W10849725 | Receptacle (Replaces: W10203476) |
|
Immediately | $ 100.00 | ||||
| 17 | WP9757601 | Breaker, Circuit (Replaces: 9757601) |
|
Immediately | $ 59.00 |
