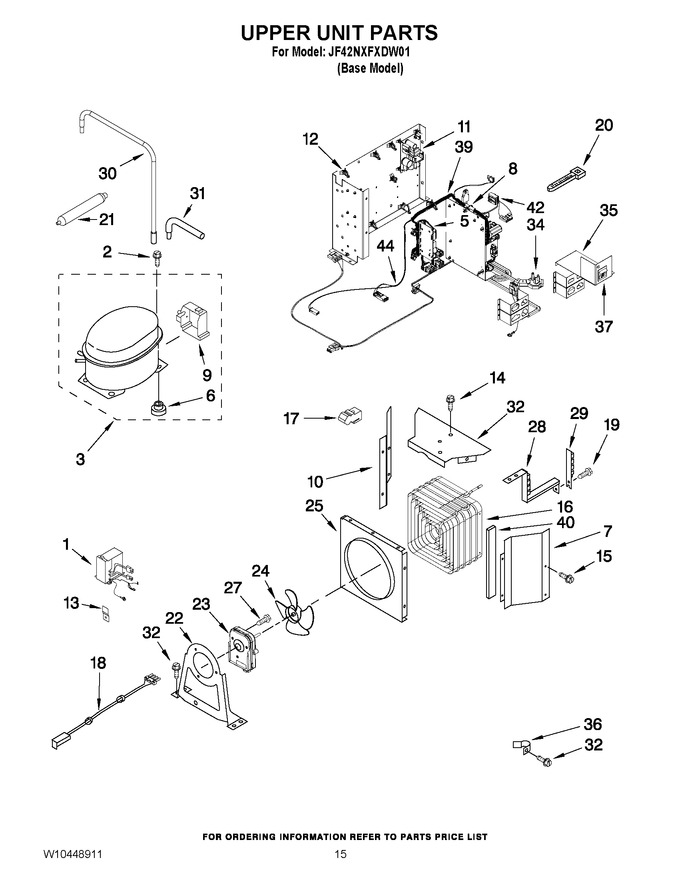

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10629033 | Inverter Box (Replaces: W10133449) |
|
Immediately | $ 399.11 | ||||
| 2 | 876811 | Screw, Compressor Mounting (Replaces: 489373) |
|
$ 7.01 | |||||
| 3 | W10841139 | Compressor (includes Items 6, 9 & 21) (also Order 876765 Tube Kit) (Replaces: W10173296) |
|
Immediately | $ 454.96 | ||||
| 5 | WPW10184634 | Ctrl-elek, Yoda (Replaces: W10184634) |
|
$ 390.86 | |||||
| 6 | 876811 | Grommet, Mounting (Replaces: 1100826) |
|
$ 7.01 | |||||
| 7 | 2309002 | Support, Condenser (right) |
|
- | |||||
| 8 | WPW10200659 | Ctrl-elek, Gemini (Replaces: W10200659) |
|
Immediately | $ 370.15 | ||||
| 9 | 2215676 | Terminal Cover |
|
$ 84.92 | |||||
| 10 | 2309001 | Support, Condenser (left) |
|
- | |||||
| 11 | WPW10356040 | Ctl-elek, Flash (Replaces: W10120824) |
|
Immediately | $ 290.54 | ||||
| 12 | WP2203075 | Spacer (Replaces: 2203075) |
|
Immediately | $ 16.93 | ||||
| 13 | 2256328 | Bracket, Inverter Box |
|
- | |||||
| 14 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 10.68 | ||||
| 15 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 16 | 2307998 | Condenser |
|
$ 459.05 | |||||
| 17 | 2309431 | Grommet |
|
$ 12.81 | |||||
| 18 | 2310207 | Wire, Jumper |
|
- | |||||
| 19 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.57 | |||||
| 20 | WPW10339879 | Wire Tie (Replaces: 2155774) |
|
$ 7.47 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10175593) |
|
Immediately | $ 27.70 | ||||
| 22 | WPW10136614 | Bracket, Fan Motor (Replaces: W10136614) |
|
$ 74.76 | |||||
| 23 | W11578915 | Motor, Fan (Replaces: 2188875) |
|
Immediately | $ 77.99 | ||||
| 24 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 89.84 | |||||
| 25 | 2003169 | Orifice, Fan |
|
- | |||||
| 27 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 10.09 | |||||
| 28 | 2317031 | Bracket, Vibration (condenser) |
|
- | |||||
| 29 | 2317030 | Arm, Vibration (condenser) |
|
- | |||||
| 30 | 2307566 | Tube, Transition (condenser/drier) |
|
$ 16.06 | |||||
| 31 | W10528578 | Tube, Process (Replaces: 2194319) |
|
$ 35.84 | |||||
| 32 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 34 | 2310196 | Service Cord |
|
Immediately | $ 79.67 | ||||
| 35 | W10209446 | Bracket, Mounting (power Switch) |
|
- | |||||
| 36 | 549193 | Clamp, Cord |
|
$ 12.65 | |||||
| 37 | WP2266802 | Switch, Power Disconnect (Replaces: 2266802) |
|
$ 98.17 | |||||
| 39 | W10209460 | Wire Assy, Dc |
|
- | |||||
| 40 | 2309432 | Gasket, Condenser |
|
- | |||||
| 42 | W10209462 | Wire Assy, Ac |
|
- | |||||
| 44 | W10209501 | Wire Assy, Yoda |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge (6.25 Oz. (r-134a)) |
|
- |
