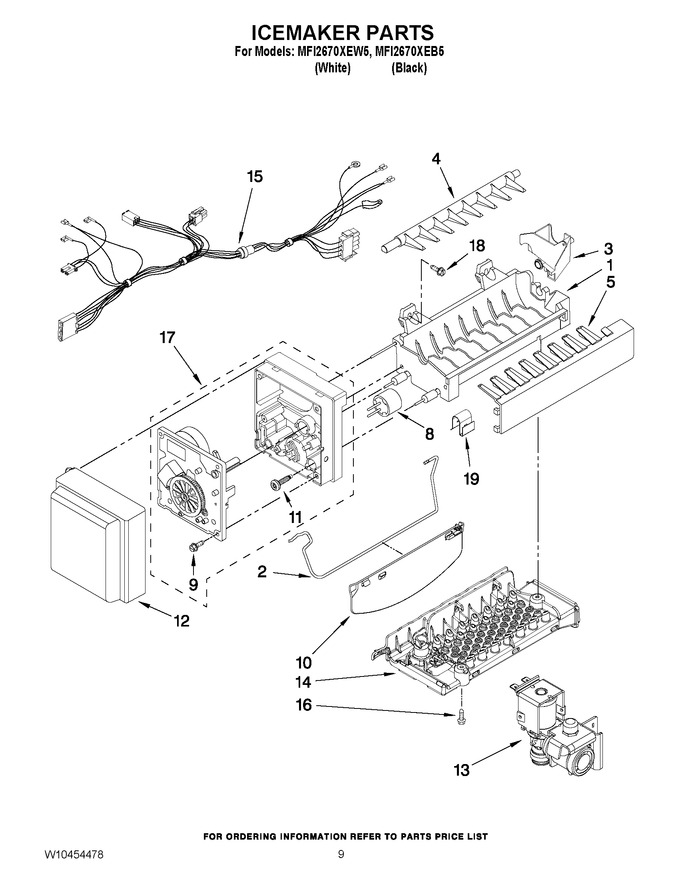

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10300025 | Mold & Heater Assembly (also Order 542638 Grease) (Replaces: W10300025) |
|
Immediately | $ 181.73 | ||||
| 2 | WPW10378254 | Arm, Shutoff (Replaces: W10378254) |
|
$ 71.88 | |||||
| 3 | W10377998 | Cup, Fill |
|
$ 74.73 | |||||
| 4 | W10318914 | Ejector |
|
$ 34.27 | |||||
| 5 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 89.48 | |||||
| 8 | WP627985 | Thermostat (also Order 542369 Cement) (Replaces: W10290336) |
|
$ 103.18 | |||||
| 9 | W10001240 | Screw (3) |
|
$ 8.30 | |||||
| 10 | WPW10121440 | Extension, Shutoff Arm (Replaces: W10121440) |
|
$ 84.48 | |||||
| 11 | 8533917 | Screw (2) |
|
$ 12.64 | |||||
| 12 | W10460383 | Cover (Replaces: W10388303) |
|
$ 92.76 | |||||
| 13 | WPW10498990 | Valve, Single (Replaces: W10342318) |
|
Immediately | $ 189.62 | ||||
| 14 | WPW10312691 | Impinger Assy. (Replaces: W10312691) |
|
$ 330.00 | |||||
| 15 | W11029433 | Harness, Icemaker (Replaces: W10404016) |
|
$ 240.54 | |||||
| 16 | 67006425 | Screw, Impinger (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 17 | W10882923 | Module Assembly (Replaces: W10377147) |
|
Immediately | $ 240.36 | ||||
| 18 | W10001240 | Screw (3) |
|
$ 8.30 | |||||
| 19 | WP628379 | Clip (Replaces: 628379) |
|
$ 9.99 | |||||
| 100 | W10882923 | Icemaker Assembly (Replaces: W10377151) |
|
Immediately | $ 240.36 | ||||
| NI | 10244904SP | Coupling |
|
- |
