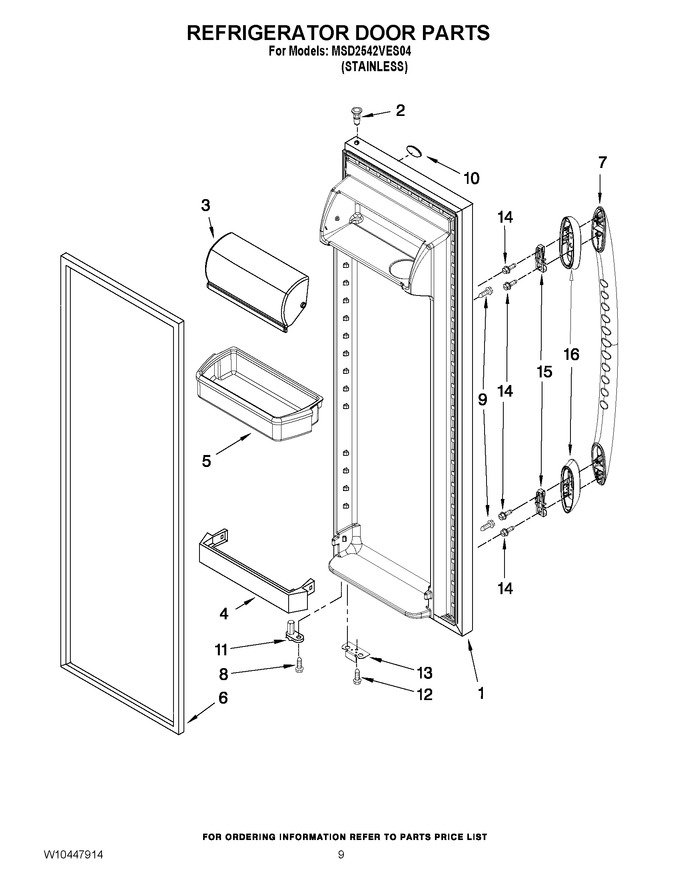

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10402739		Refrigerator Door (includes Item No.6) (stainless Steel)		Appelez-nous	-
2	WP2182181		Thimble-top   (Replaces: 2308091)				$ 7.34
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 80.48
4	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 68.69
5	WP2187172		Door Bin (3)   (Replaces: 2187172)			Immediately	$ 40.58
6	2159083		Door Gasket, Magnetic   (Replaces: 2309529)				$ 299.48
7	WP12743701B		Handle   (Replaces: 12743701B)				$ 171.78
8	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
9	WPW10288153		Stud, Handle   (Replaces: 2326016)			Immediately	$ 8.69
10	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 63.45
11	WP2182179		Door Closer Upper Cam   (Replaces: 2182178)			Immediately	$ 6.48
12	WP489483		Screw   (Replaces: 489420)				$ 10.27
13	W10185571		Bracket, Door Stop		Appelez-nous	-
14	12990203		Screw		Appelez-nous	-
15	13067101		Clip				$ 5.65
16	12834803B		End Cap				$ 59.63
